Catalyst Monitor Sensor RH: Removal
WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .

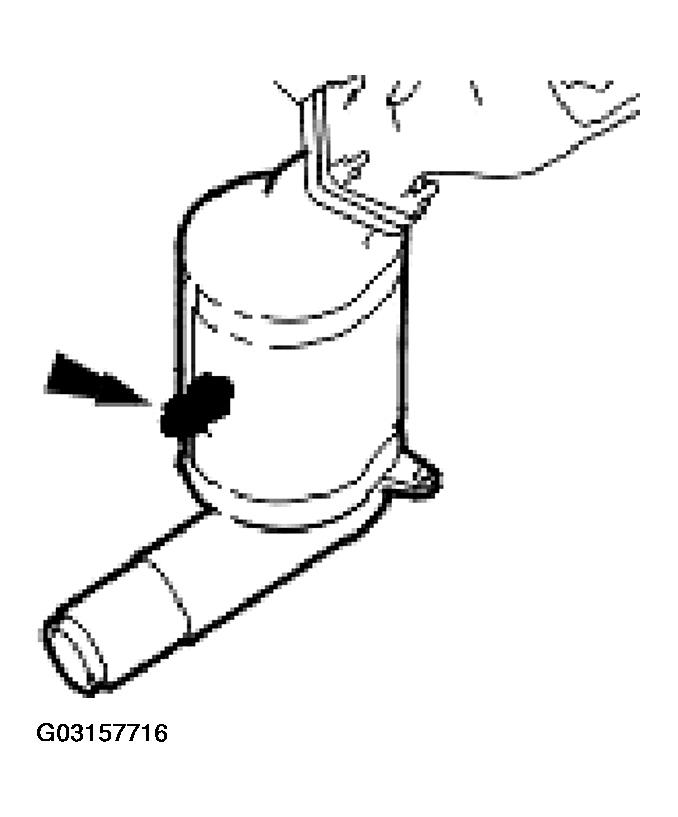

- Release the catalyst monitor sensor electrical connector from the mounting bracket and disconnect.
- Using the Snap-on tool S6176, remove the catalyst monitor sensor.
NOTE:
Left-hand shown, right-hand similar.
WARNING:
Make sure the components are cool before removing the catalyst monitor sensor. Failure to follow this instruction may result in personal injury.
CAUTION:
Make sure the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.
NOTE:
Left-hand shown, right-hand similar.
