Speed Control Sensor - Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR CARS, INC.

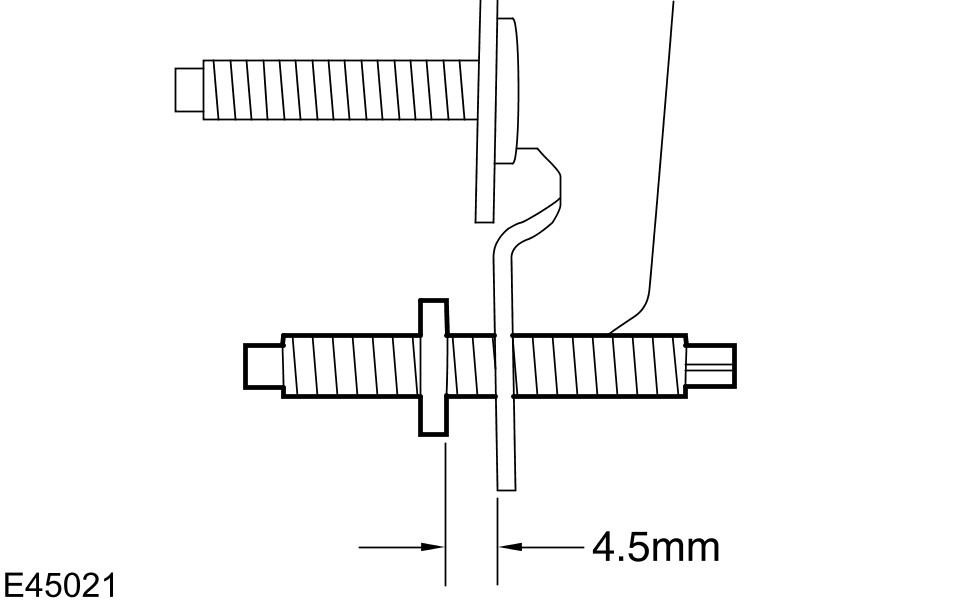

Adjust the speed control sensor levelling bolt shoulder to mounting bracket clearance to 4.5 mm.

Courtesy of JAGUAR CARS, INC.

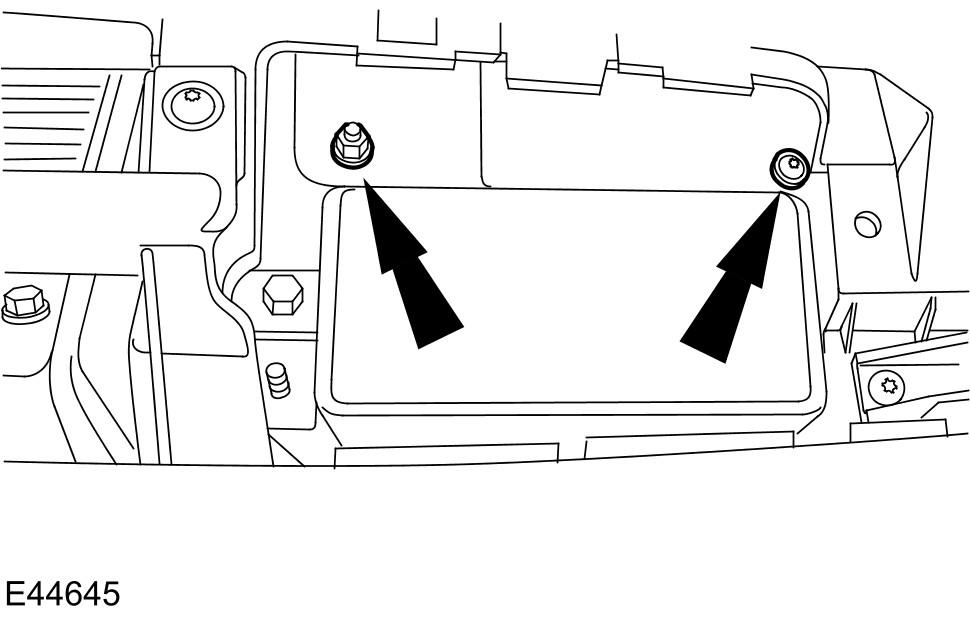

Install the speed control sensor.
- Tighten to 5 Nm.
Courtesy of JAGUAR CARS, INC.

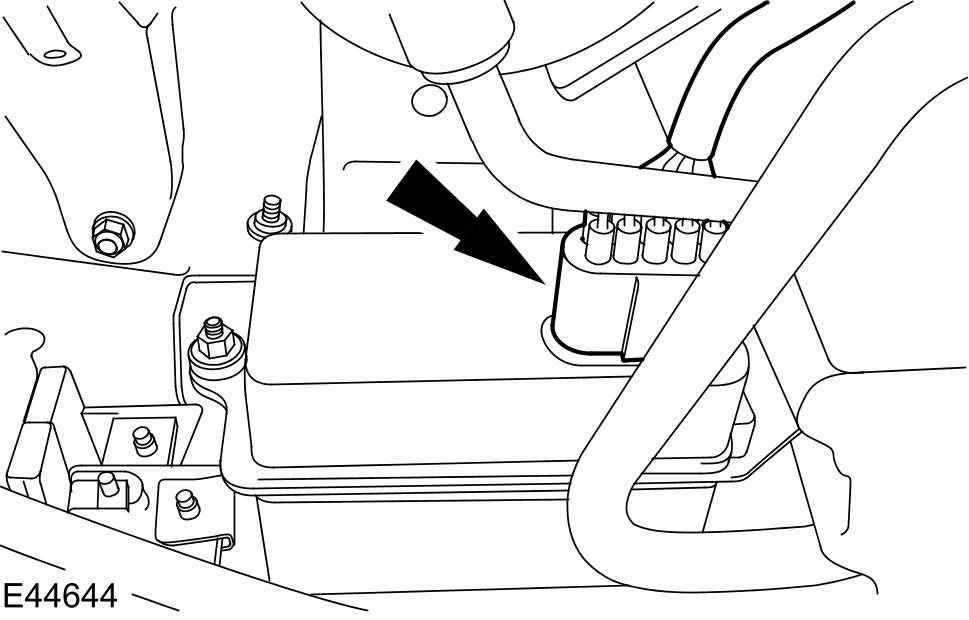

Connect the speed control sensor electrical connector.
Install the radiator splash shield. Refer to Radiator Splash Shield .
Connect the battery ground cable. Refer to Battery Connect .
Check and adjust the speed control sensor levelling. See Speed Control Module Alignment .
Install the left-hand front bumper access cover.
