Speed Control Sensor - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to Battery Disconnect .
Remove the radiator splash shield. Refer to Radiator Splash Shield .

Courtesy of JAGUAR CARS, INC.
Disconnect the speed control sensor electrical connector.
Remove the left-hand front bumper access cover.

Courtesy of JAGUAR CARS, INC.
Remove the speed control sensor.
- Remove the bolts.
Courtesy of JAGUAR CARS, INC.

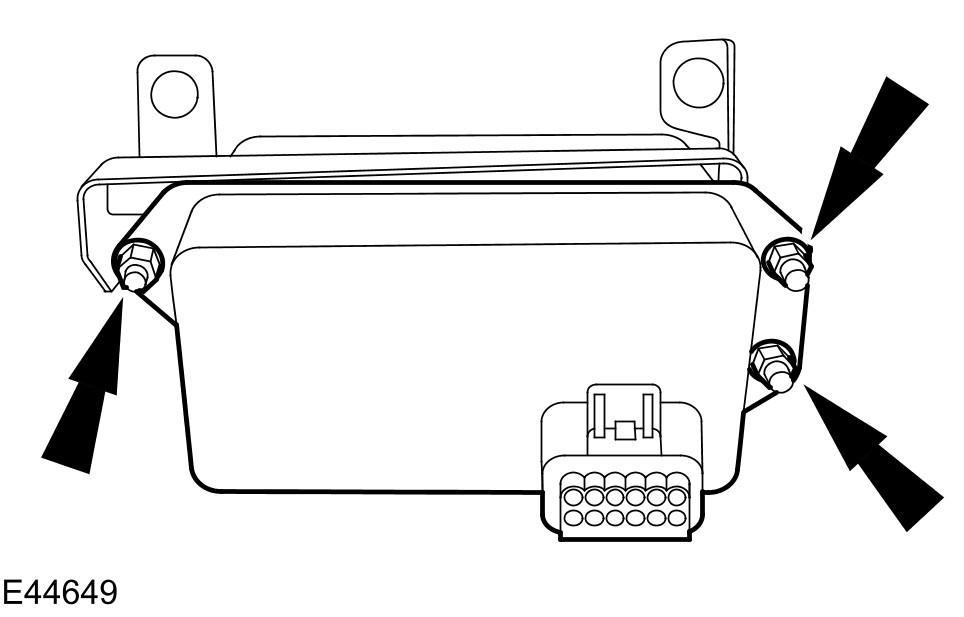

Remove the speed control sensor retaining bracket.
- Remove the nuts.
