Speed Control Switch - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver airbag module. For additional information refer to SUPPLEMENTAL RESTRAINT SYSTEM .

Courtesy of JAGUAR CARS, INC.

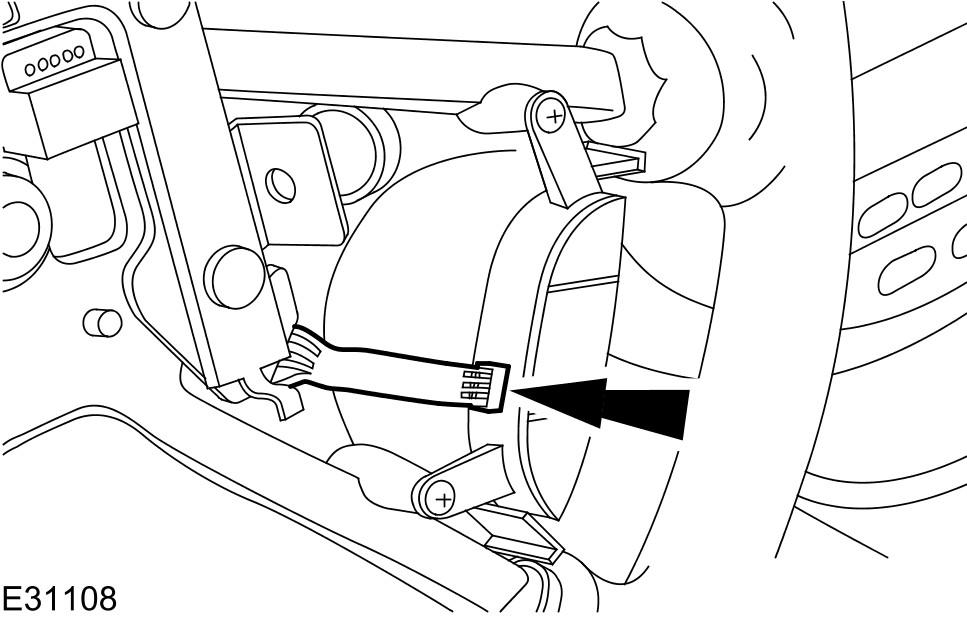

Disconnect the speed control switch electrical connector.

Courtesy of JAGUAR CARS, INC.
Remove the speed control switch
