Speed Control - Description & Operation: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

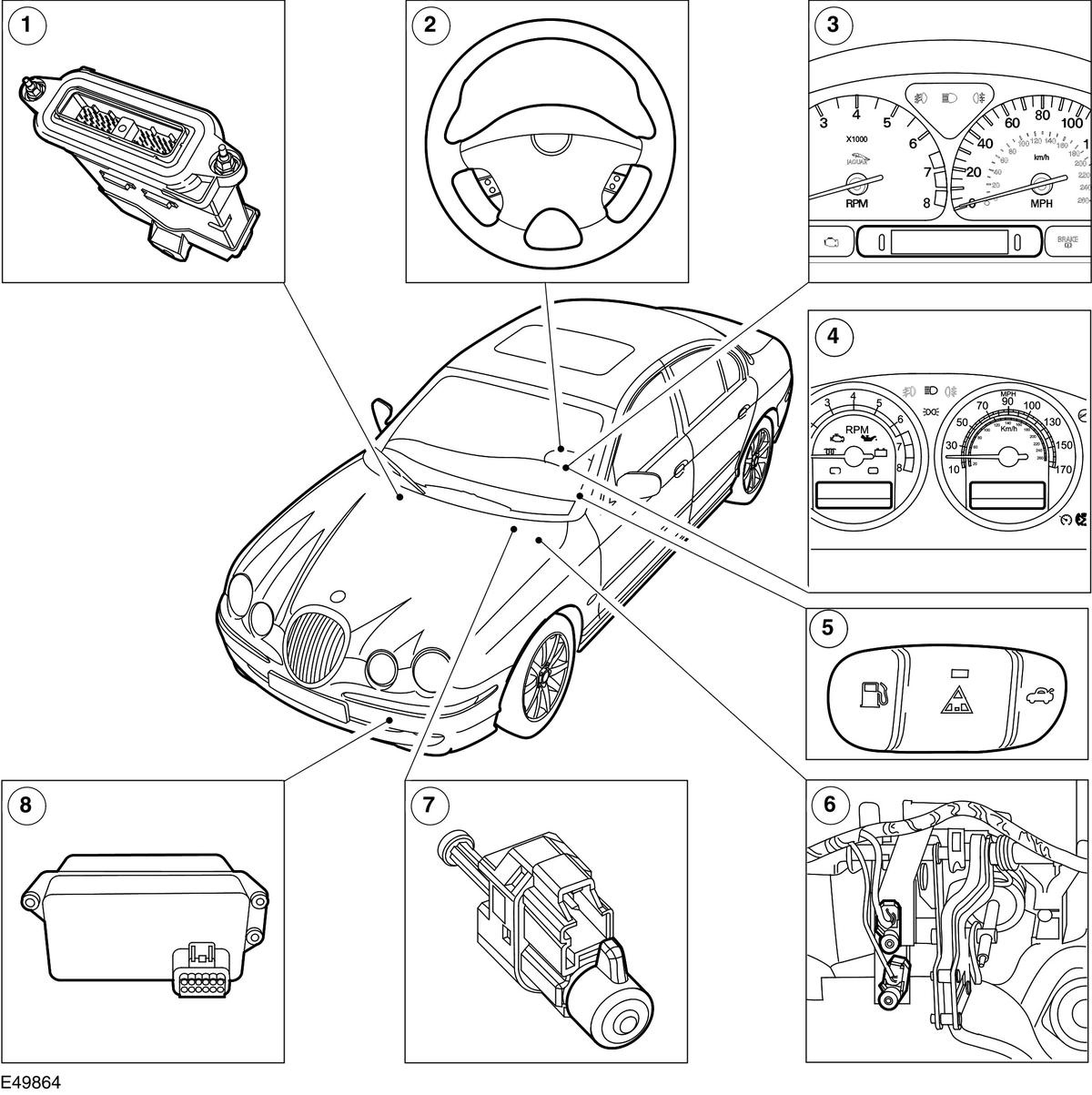

| Item Number | Description |
|---|---|
| 1 | Engine control module (ECM) |
| 2 | Speed control actuator switches |
| 3 | Message center (vehicles built up to 01/2004) |
| 4 | Message center (vehicles built 02/2004 onwards) |
| 5 | Forward alert switch - vehicles with adaptive speed control |
| 6 | Brake pedal position switch and speed control deactivate switch |
| 7 | Clutch pedal position sensor |
| 8 | Adaptive speed control module - vehicles with adaptive speed control |
