Speed Control Module - Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR CARS, INC.

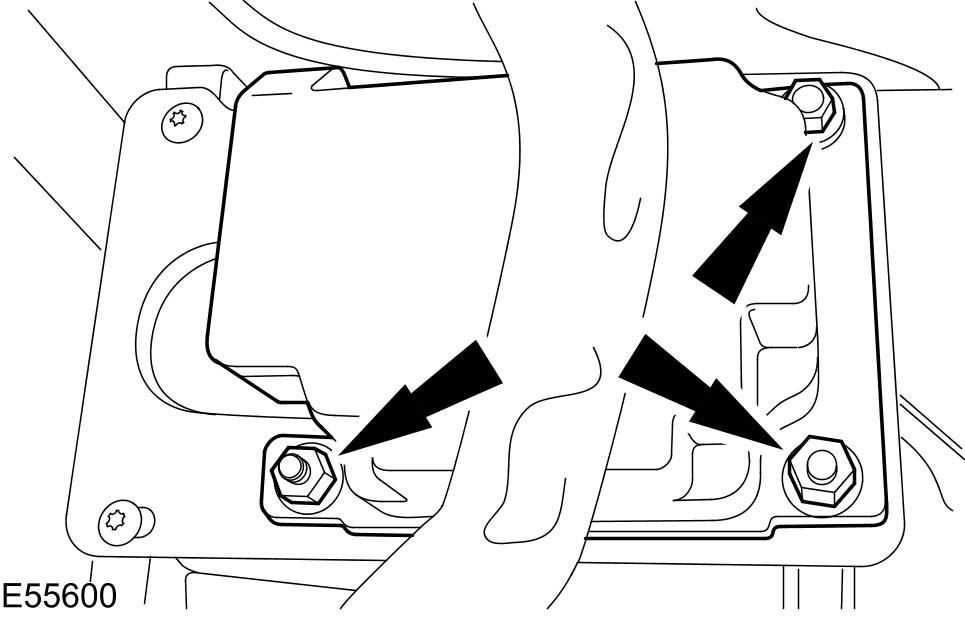

Install the speed control module.
- Tighten to 5 Nm.
Courtesy of JAGUAR CARS, INC.

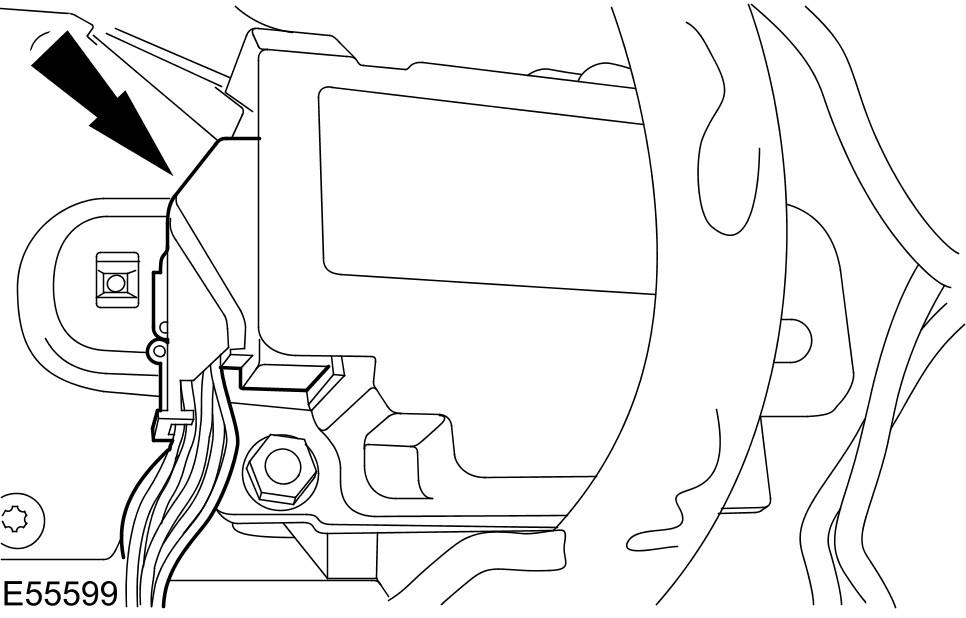

Connect the speed control module electrical connector.

Courtesy of JAGUAR CARS, INC.
Install the driver side instrument panel lower trim.
Connect the battery ground cable. Refer to Battery Connect .
Using the approved Jaguar diagnostic system configure the speed control module.
