Speed Control Module Alignment - General Procedures

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Tool Illustration	Tool Name	Tool Number

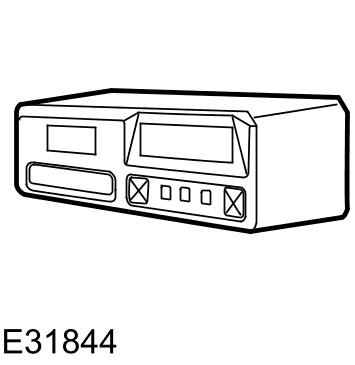

Courtesy of JAGUAR CARS, INC.	Inclinometer	501-F007

NOTE: Make sure the vehicle is positioned on level ground such as the headlamp alignment area.

Remove the left-hand front bumper access cover.

Courtesy of JAGUAR CARS, INC.

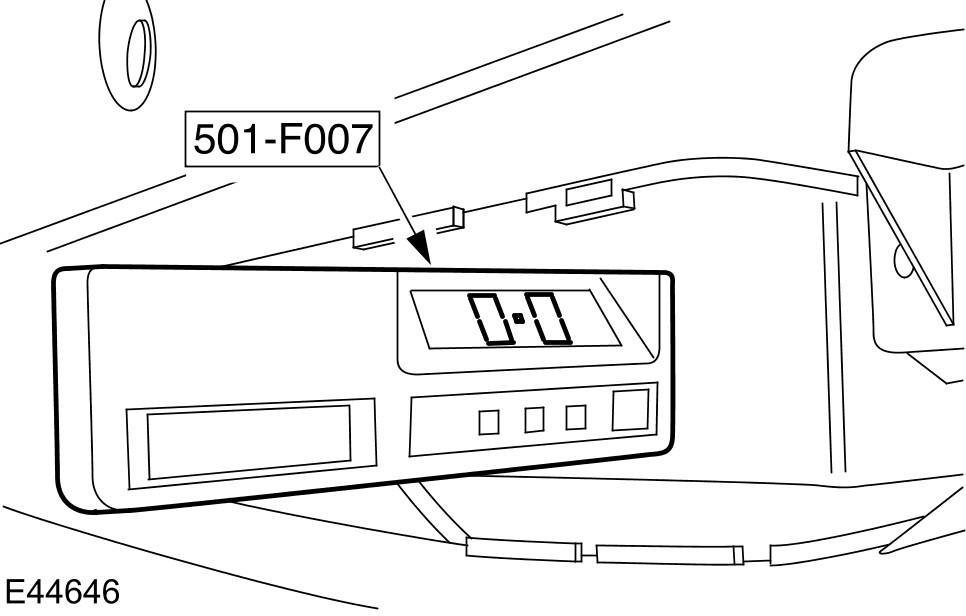

Using the special tool, check the speed control module vertical levelling.

Courtesy of JAGUAR CARS, INC.

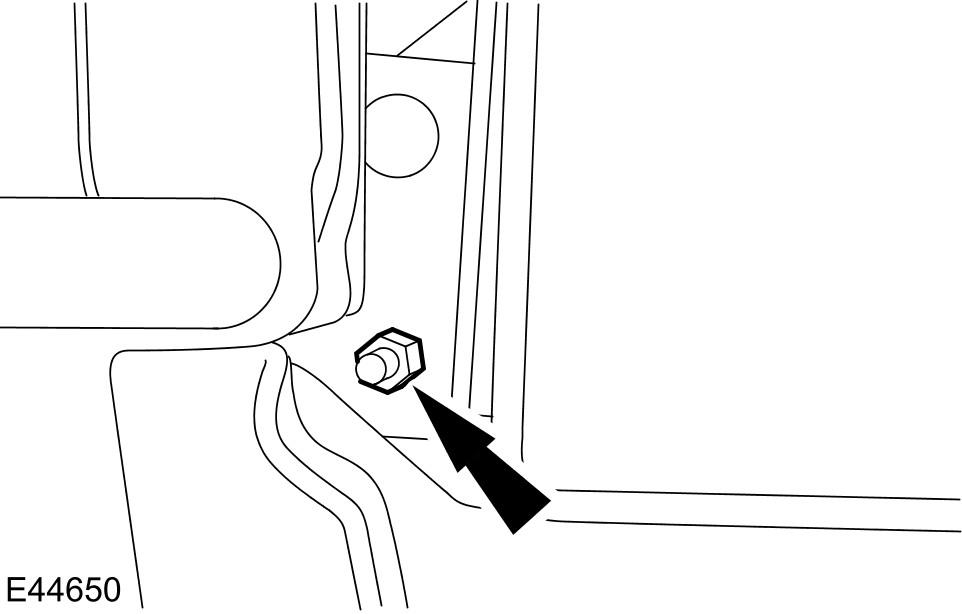

Level the speed control module.
- Rotate the speed control module levelling bolt to achieve a reading of zero degrees ± 0.75°.
Courtesy of JAGUAR CARS, INC.
Using the special tool, check the speed control module vertical levelling.
Install the left-hand front bumper access cover.
Carry out the speed control module calibration procedure. For further information, refer to the Jaguar approved diagnostic system.
