Navigation System Display Module - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel console. Refer to Instrument Panel and Console .

Courtesy of JAGUAR CARS, INC.

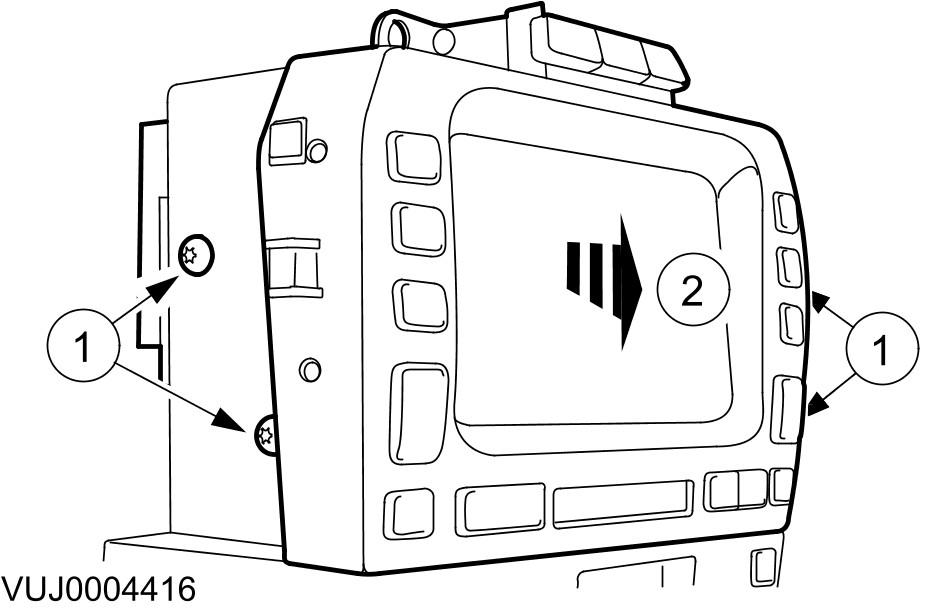

Remove the navigation system display module.
1. Remove the navigation system display module retaining bolts.
2. Remove the navigation system display module.
