Multifunction Electronic Module: Removal

Disconnect the battery ground cable. Refer to BATTERY DISCONNECTION PROCEDURE .
Remove the passenger side register duct.

Fig 1: Removing Passenger Side Register Duct
Remove the glove compartment shelf.

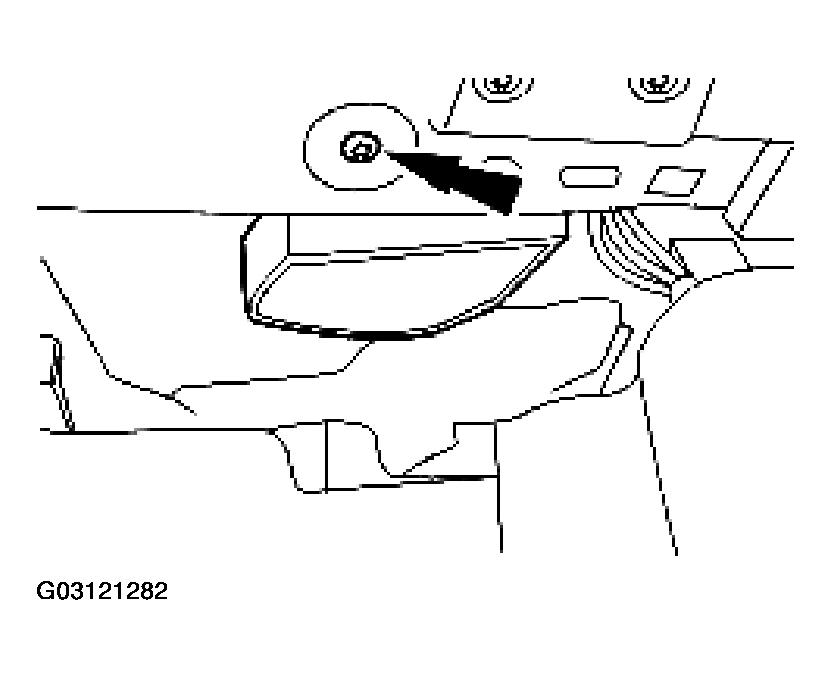

Fig 2: Removing Glove Compartment Shelf
Disconnect the multifunction electronic module electrical connector.

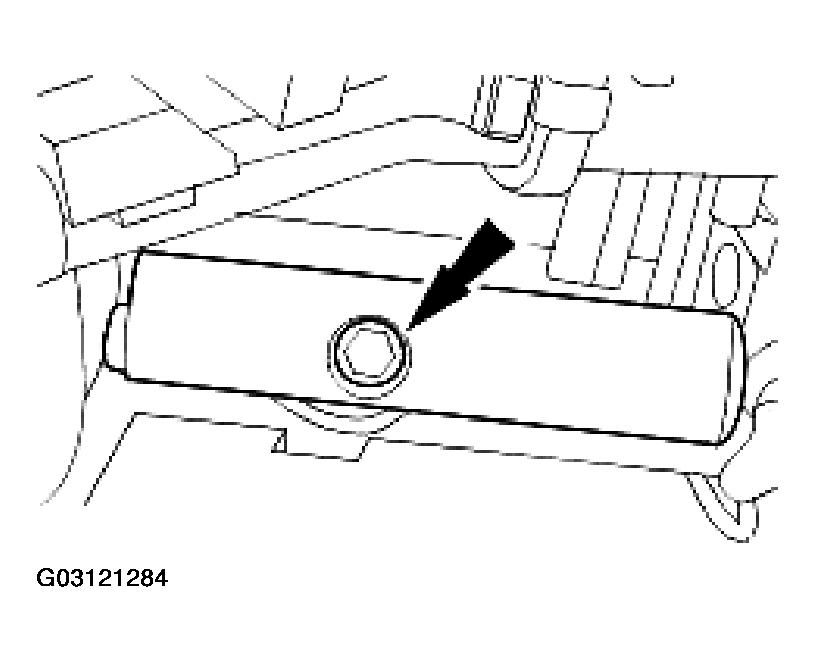

Fig 3: Disconnecting Multifunction Electronic Module Electrical Connector

NOTE: Glove compartment shown removed for clarity.

Remove the multifunction electronic module.
- Remove the three nuts which secure the module to the instrument panel (1).
- Remove the multifunction electronic module (2).

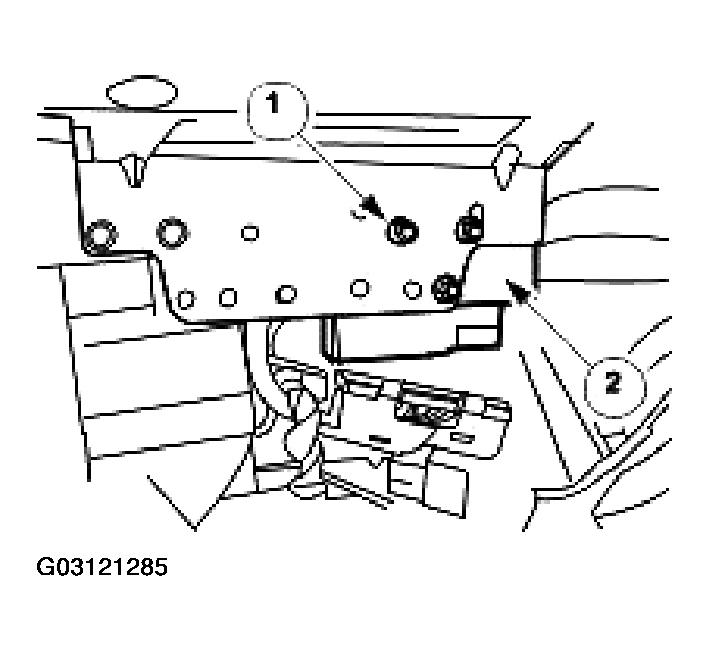

  Fig 4: Removing Multifunction Electronic Module
