Toe Adjustment-Rear

Toe Adjustment-Rear

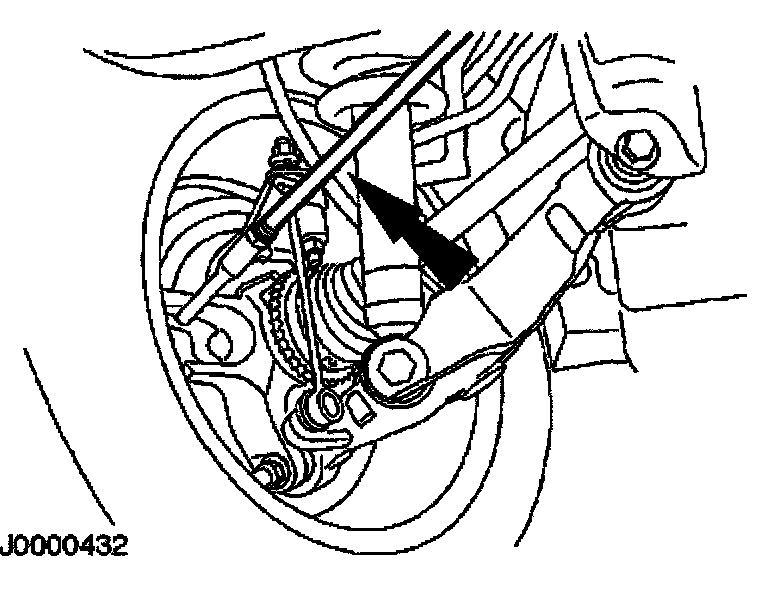

1. Loosen the lock nuts.
^ Clean and lubricate the lock nut and toe link threads.





2. Rotate the toe link to adjust the toe settings.





3. Tighten the lock nut.

4. Recheck the toe settings. Follow the equipment manufacturer's instructions.
