Early Version

Expanded procedure(s) for setting timing or servicing timing chain(s) can be found at "Engine : Timing Components : Service and Repair". Service and Repair

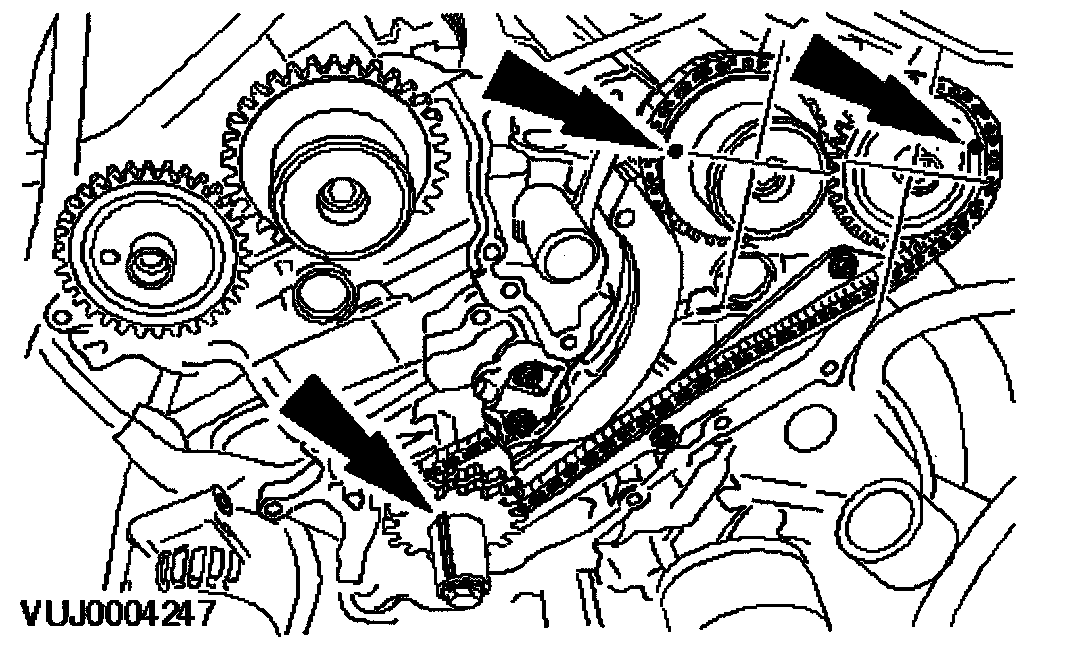

Right hand time chain with marks.

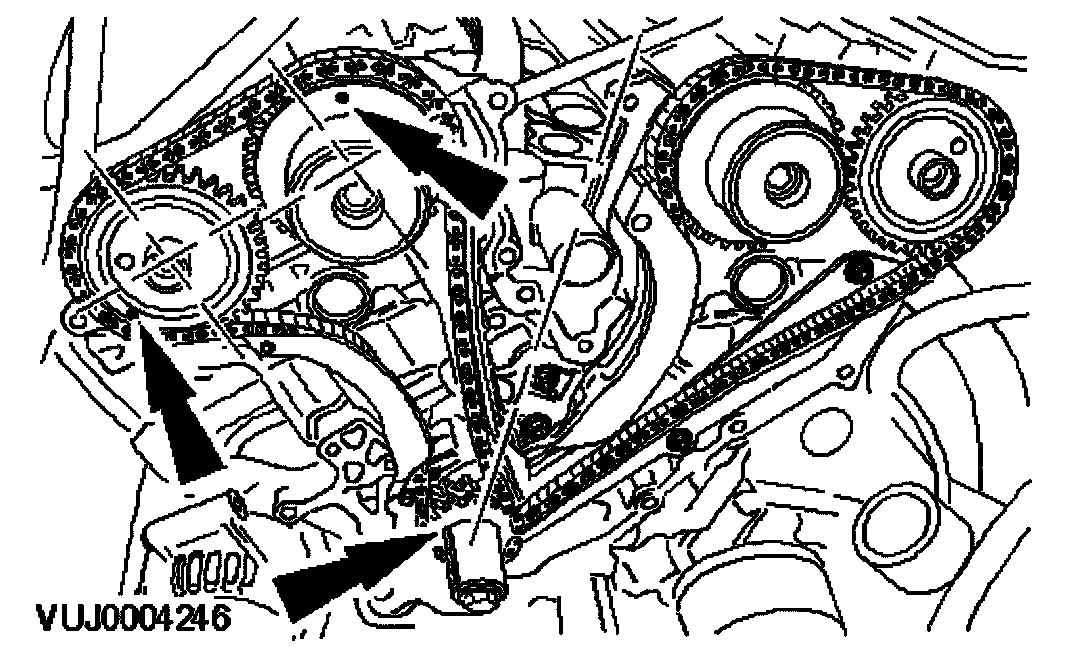

Left hand chain with marks.





Make sure the alignment marks on the rear of the camshaft sprockets are in line when the crankshaft keyway is at the 11 O'clock position.
