Power Steering Pressure Switch: Service and Repair

Power Steering Pressure (PSP) Switch

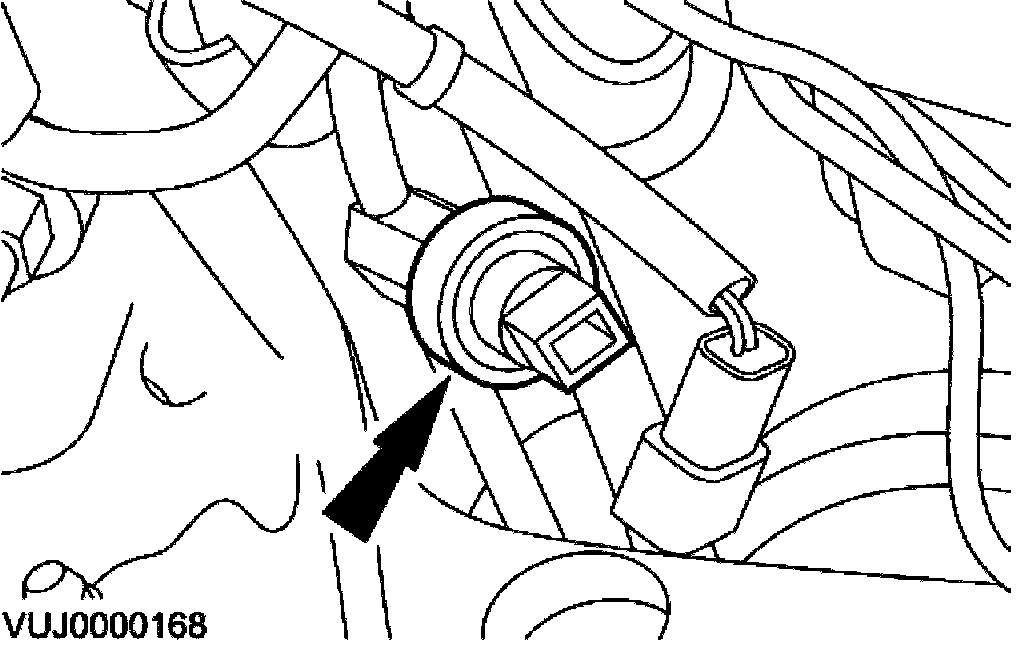

1. Disconnect the power steering pressure (PSP) switch electrical connector.







2. NOTE: When removing the power steering pressure switch catch any displaced fluid in a suitable container.

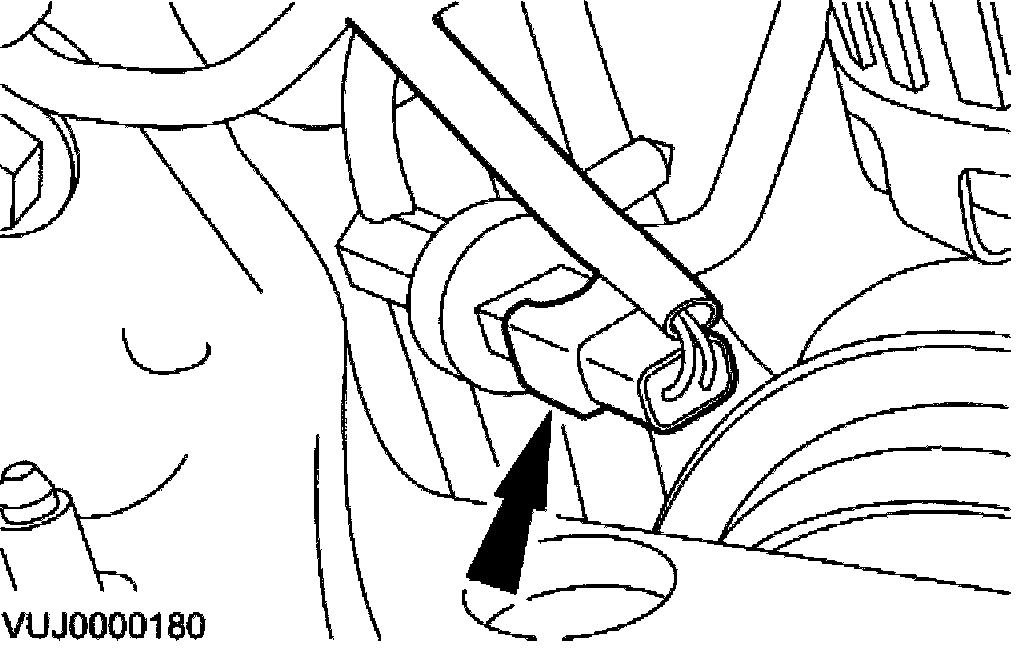

Remove the power steering pressure switch.

Installation

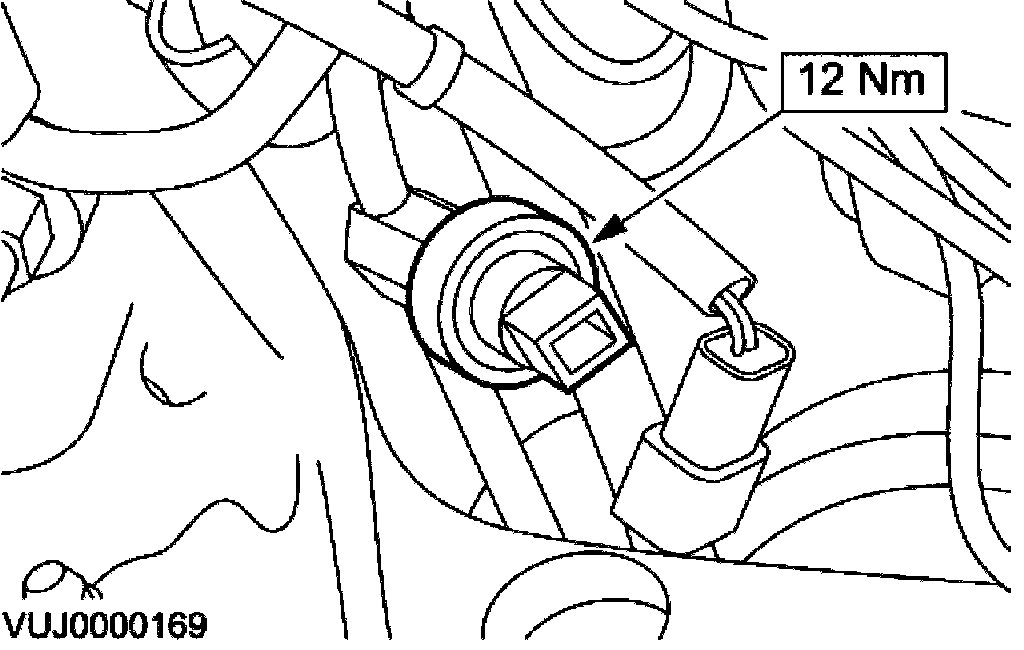

1. To install, reverse the removal procedure.
2. Fill the power steering fluid reservoir as necessary. Bleed the power steering system.
