Air Conditioning Control Module Connector End View

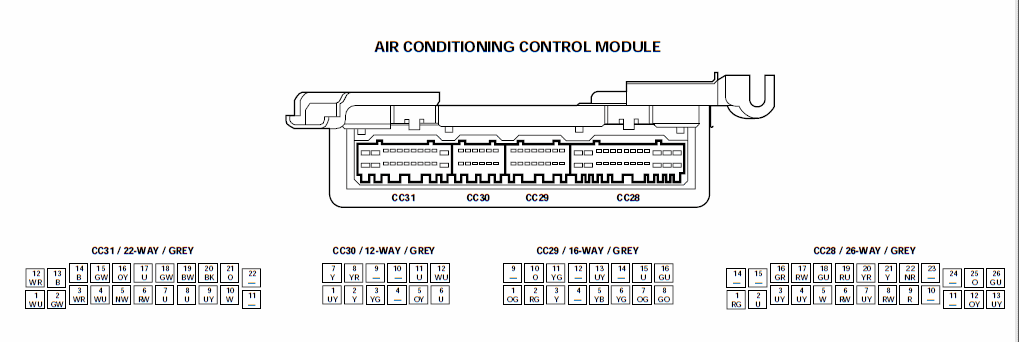

Fig 1: Air Conditioning Control Module Connector End View
G00558643Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
