Anti-Lock Brake System (Abs) Module: Installation

Install ABS/TCCM, take care not to damage brake tubes.
- Install and tighten bolts.

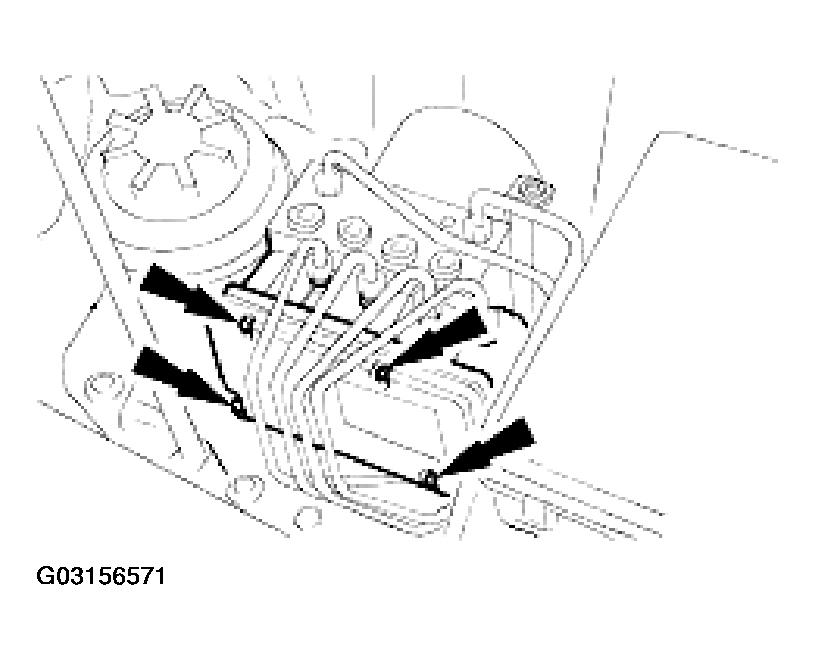

Fig 1: Installing ABS/TCCM
Courtesy of JAGUAR CARS, INC.
Install brake tubes.
- Remove plugs from ports and brake tubes.
- Install brake tubes and tighten union nuts. Refer to BRAKE TUBE, HOSES AND BRACKET TORQUE SPECIFICATIONS table for torque setting.

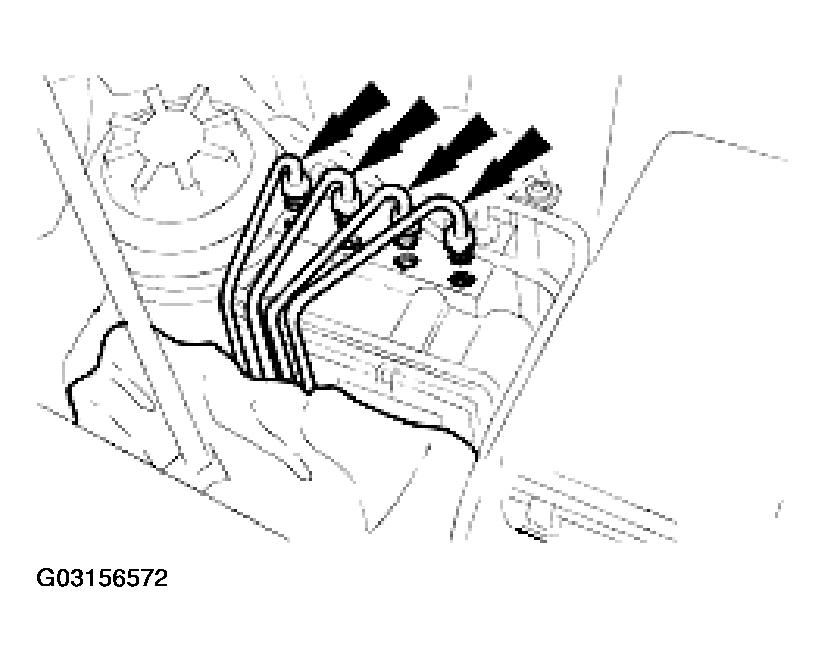

Fig 2: Installing Brake Tubes
Courtesy of JAGUAR CARS, INC.
Connect upper electrical connector.
- Push plunger down to secure connector.
Fig 3: Connecting Upper Electrical Connector
Courtesy of JAGUAR CARS, INC.
Install elbow to washer bottle filler neck.
- Install 'O'-ring seal.
- Install elbow.

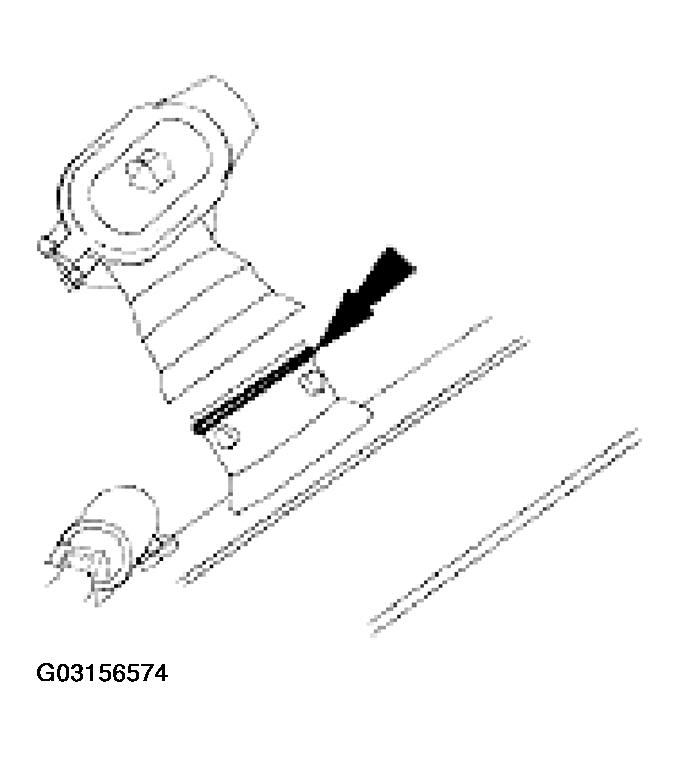

Fig 4: Installing Elbow To Washer Bottle Filler Neck
Courtesy of JAGUAR CARS, INC.
Remove special tool from brake pedal.
Reconnect battery ground cable. Refer to BATTERY RECONNECTION PROCEDURE .
Bleed brake system. Refer to BLEEDING BRAKE SYSTEM .
