Speed Control Module: Removal

Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .
Remove the hood. For additional information, refer to HOOD .
Disconnect the speed control module electrical connector.

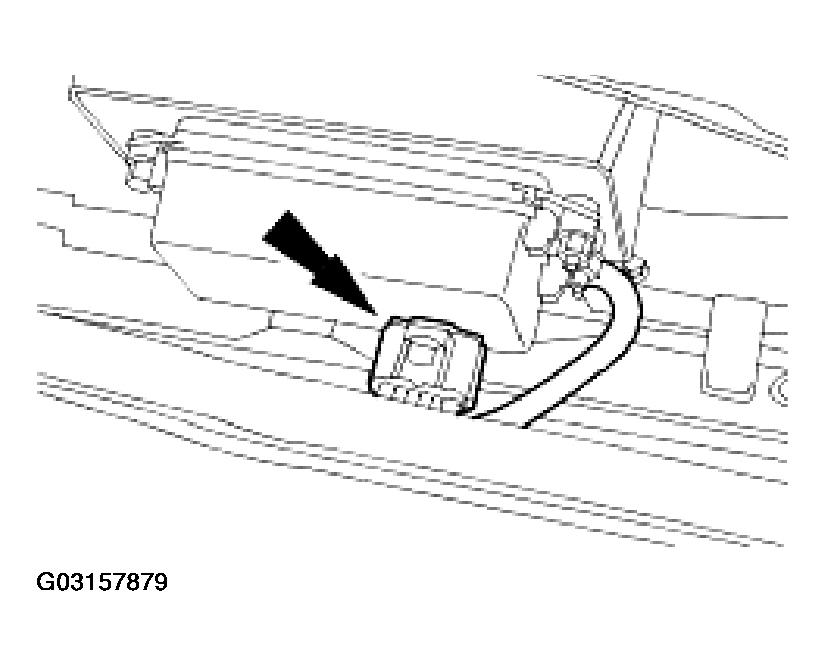

Fig 1: Disconnecting Speed Control Module Electrical Connector
Courtesy of JAGUAR CARS, INC.
Remove the speed control module.

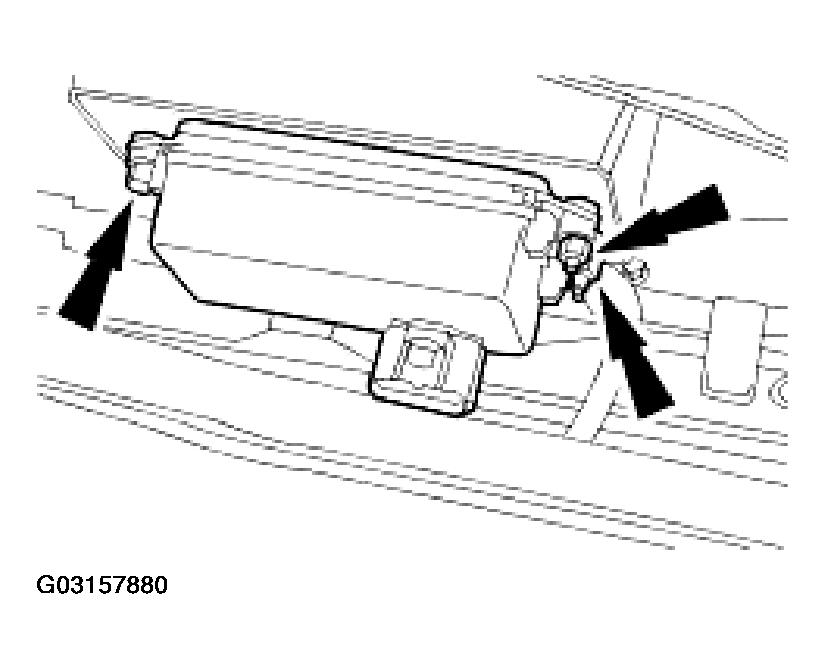

Fig 2: Removing Speed Control Module
Courtesy of JAGUAR CARS, INC.
