Cruise Control Module: Service and Repair

Speed Control Module

Removal

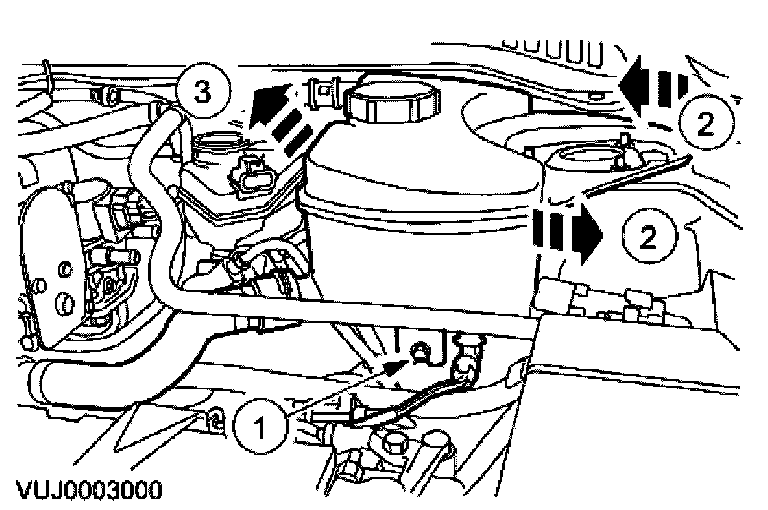

1. Detach the inner cable.







2. Detach the outer cable.







3. Detach the coolant expansion tank.

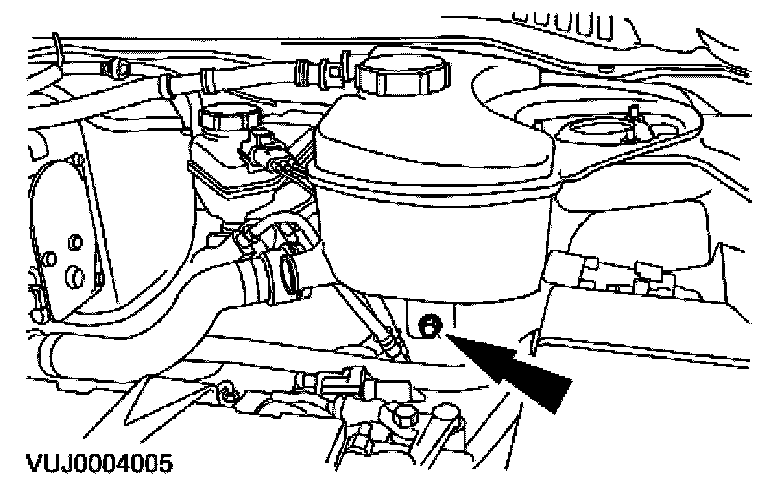

1. Remove the coolant expansion tank retaining bolt.
2. Turn the coolant expansion tank counter clockwise.
3. Detach the coolant expansion tank.

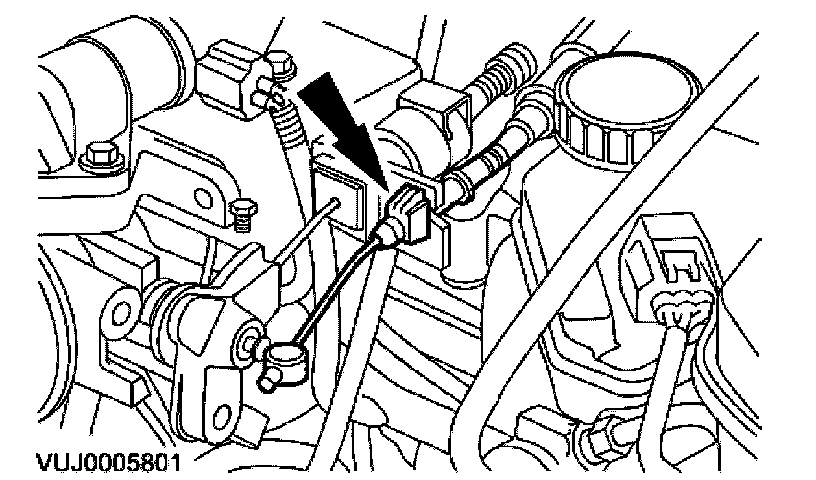

4. Disconnect the electrical connector.







5. Remove the module retaining bolt.







6. Remove the module.

Installation

1. To install, reverse the removal procedure.







2. Tighten to 4 Nm.







3. Tighten to 3 Nm.
