System Specifications





Engine Systems General Specifications

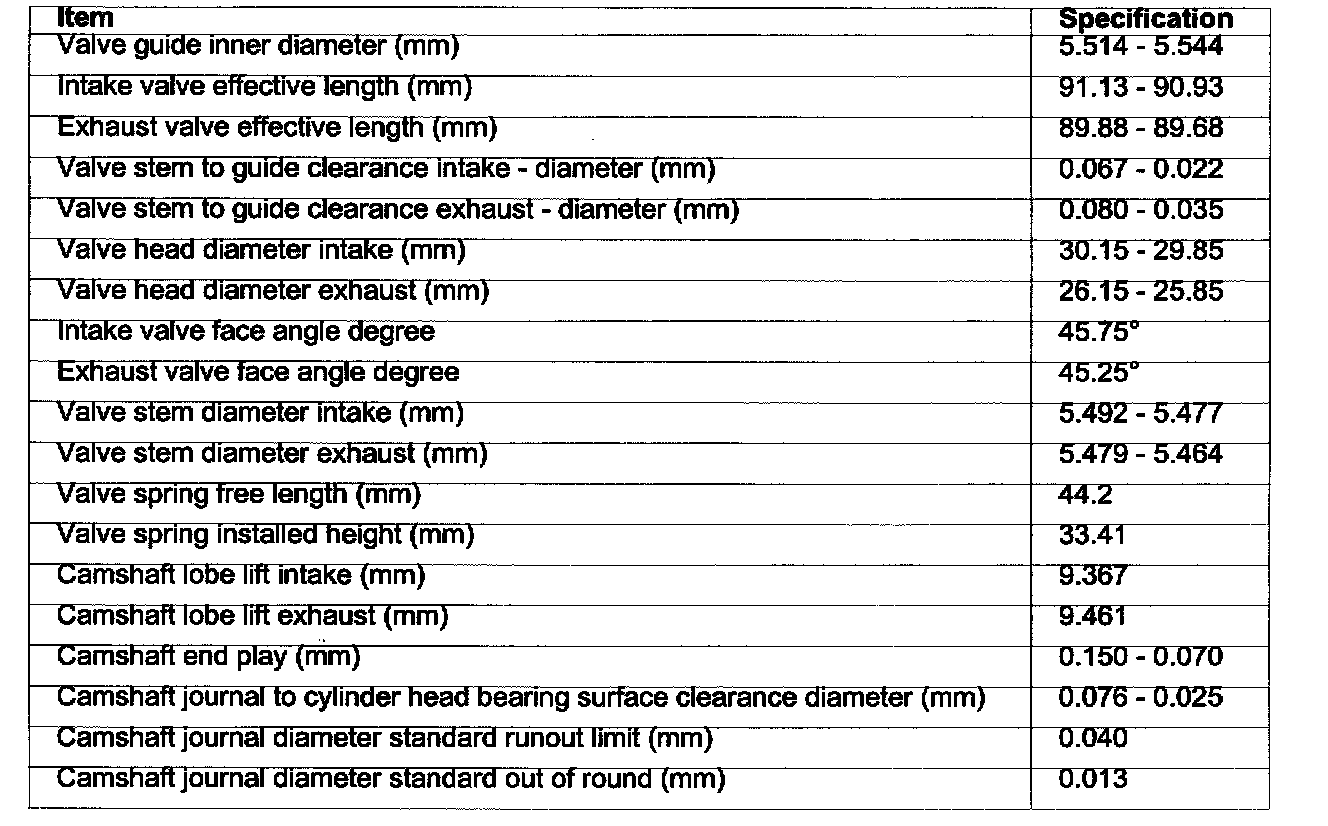

Engine Systems Cylinder Head and Valve Train

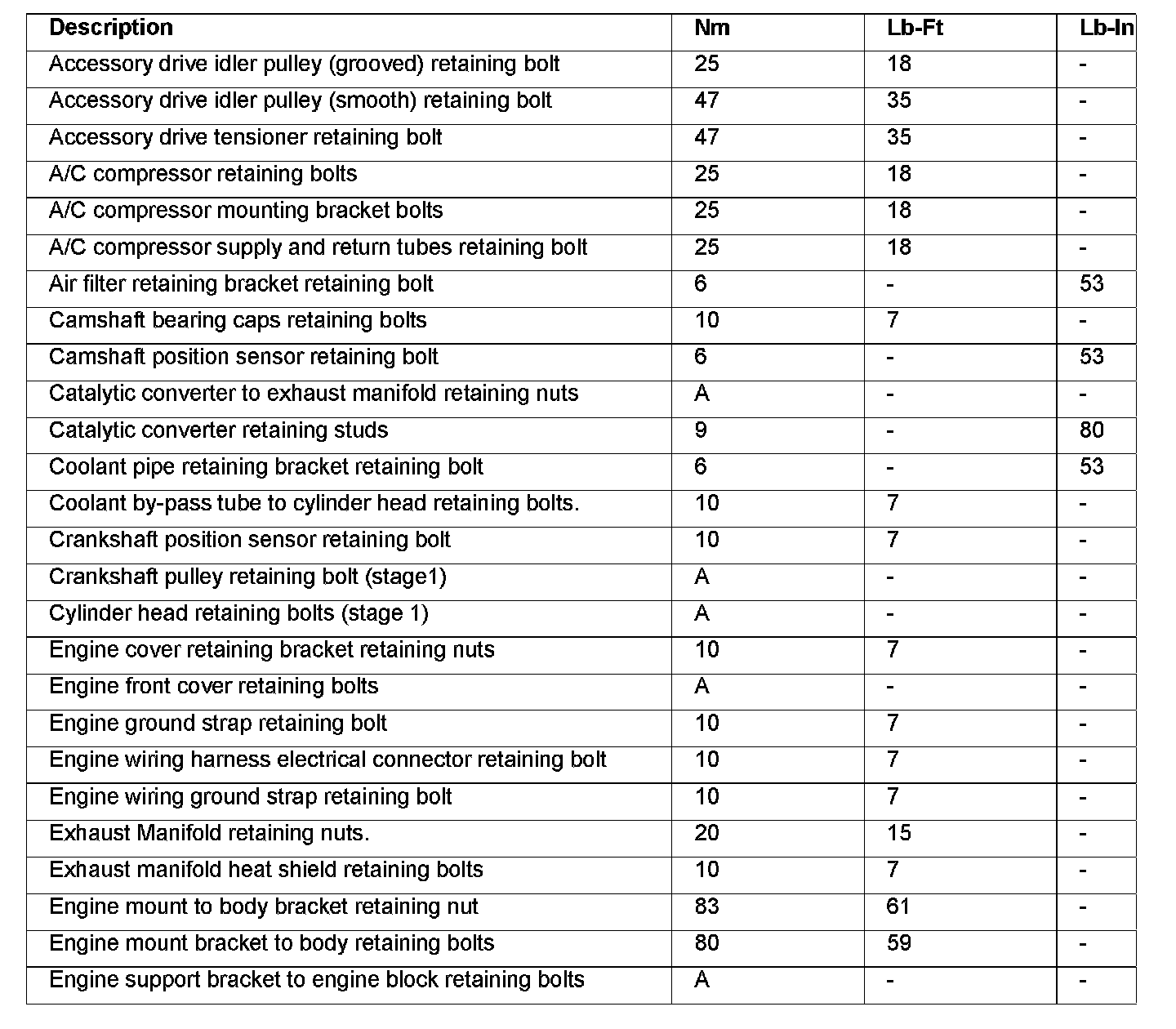

Engine Torque Specifications Part 1 of 2

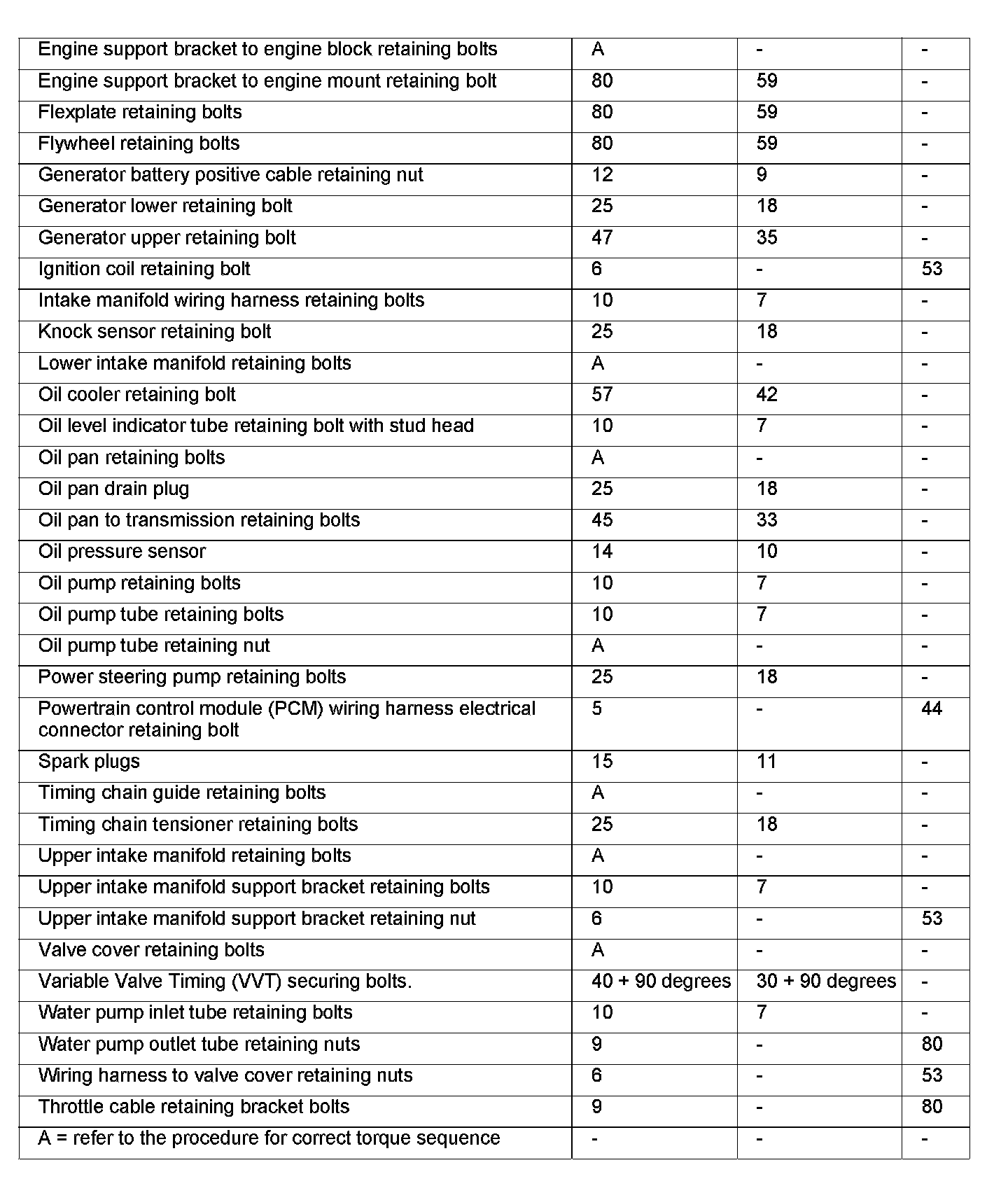

Engine Torque Specifications Part 2 of 2

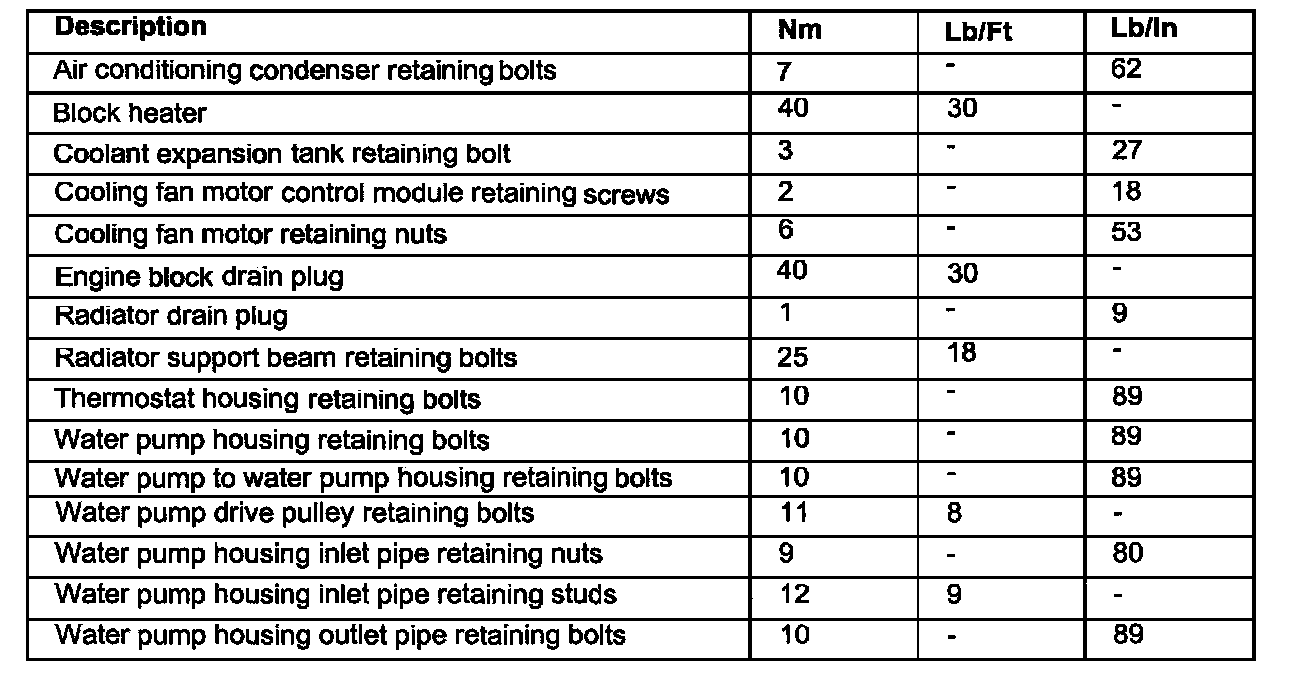

Engine Cooling Torque Specifications





Accessory Drive Torque Specifications

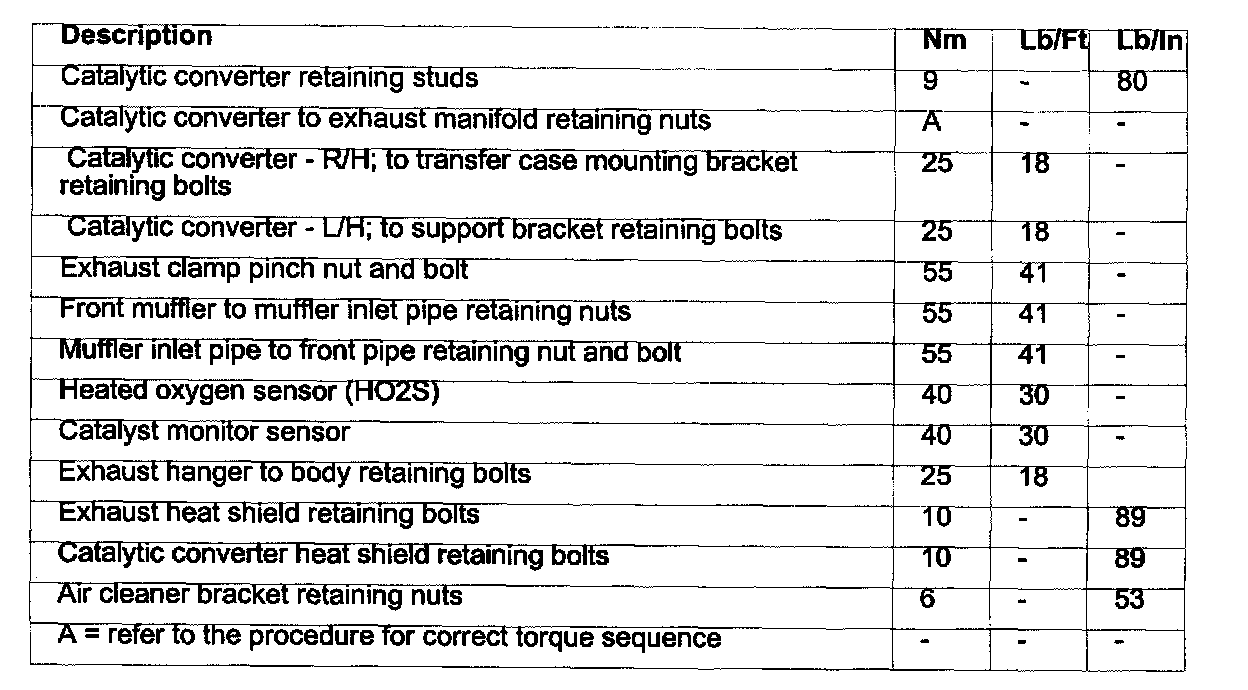

Exhaust System Torque Specifications
