Control Module: Service and Repair

Removal

1. Remove the rain sensor module.

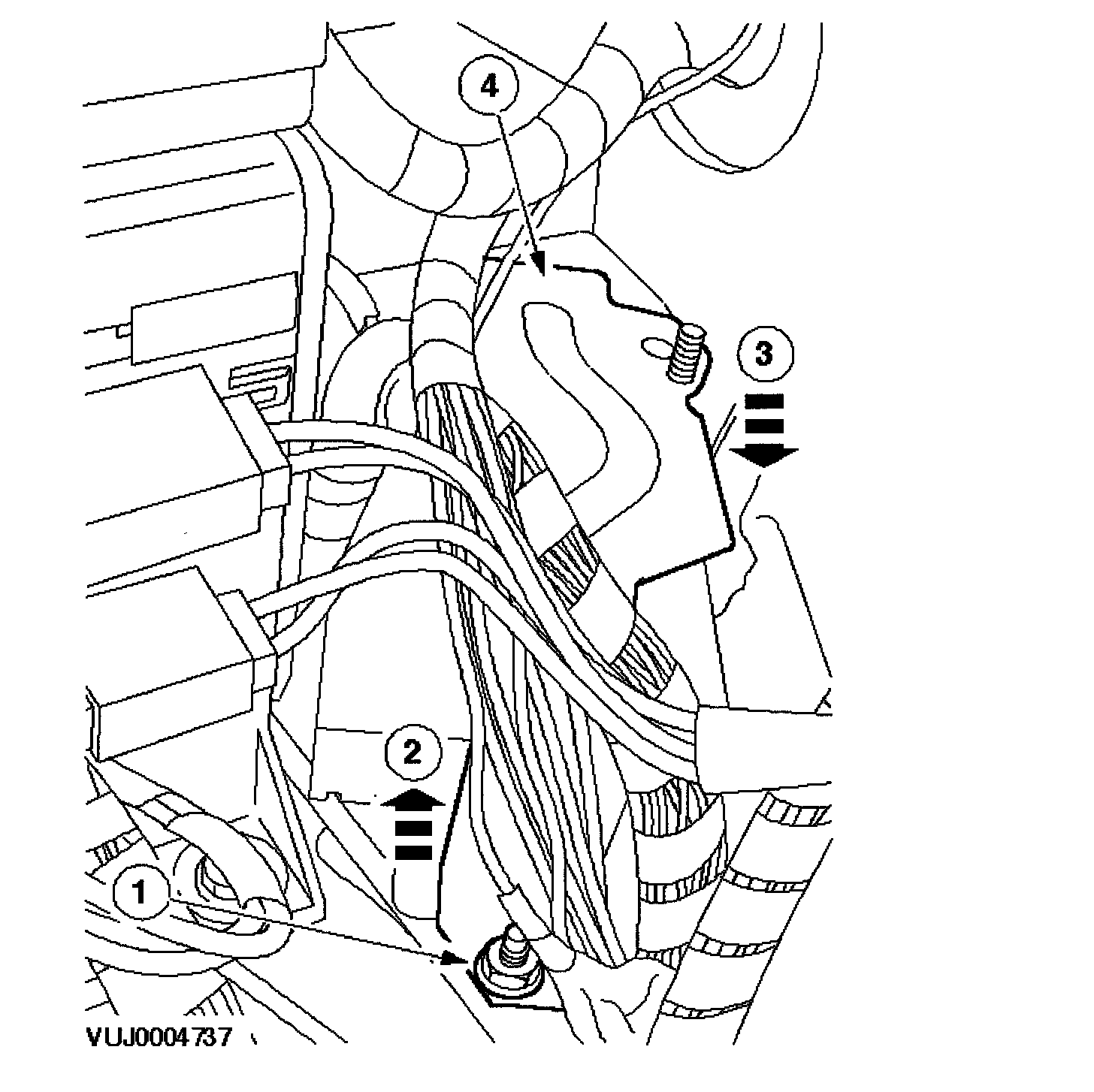

2. Remove the mounting plate.

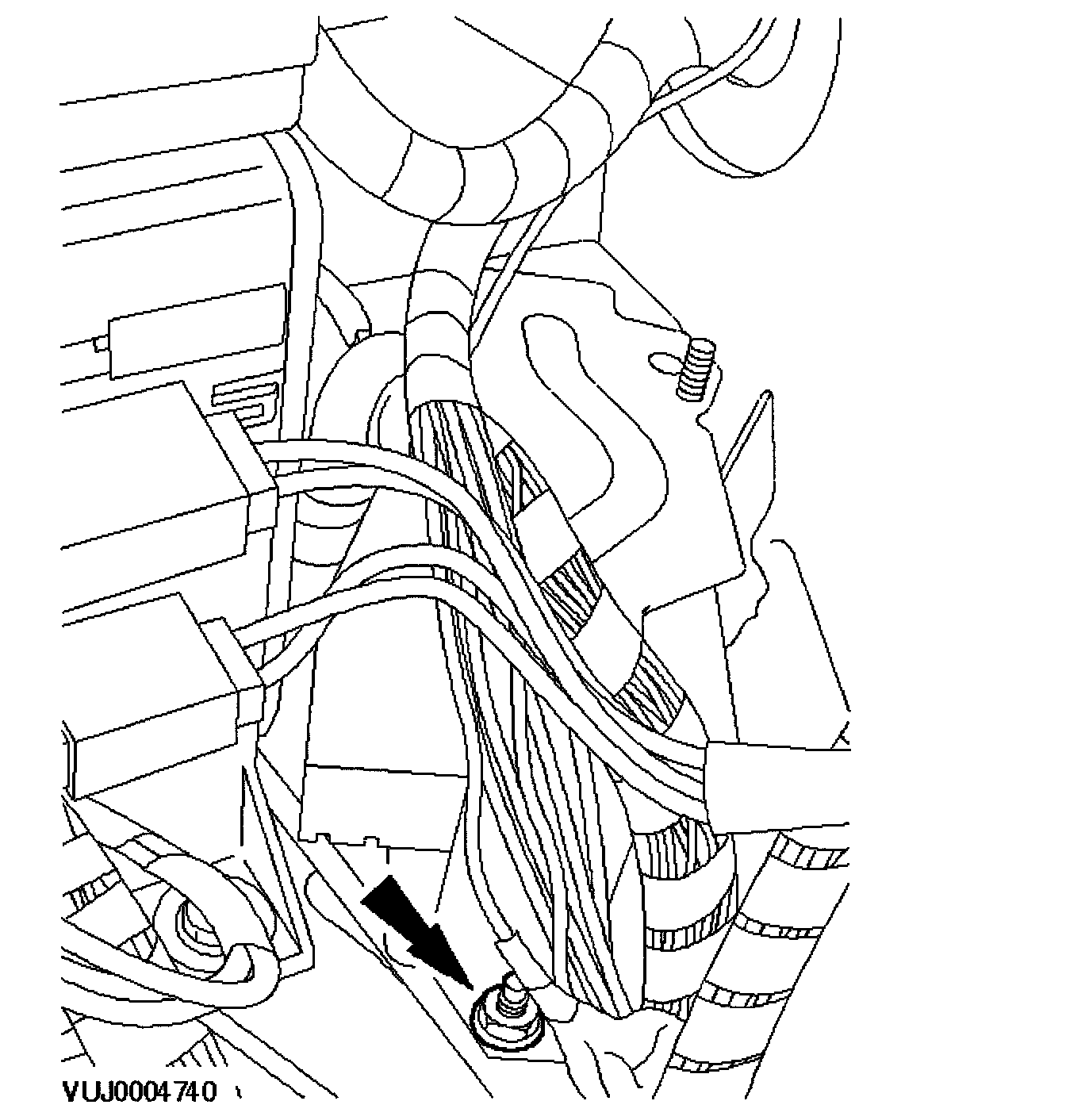

1. Remove the retaining nut.
2. Reposition the mounting plate.
3. Detach the mounting plate.
4. Remove the mounting plate.

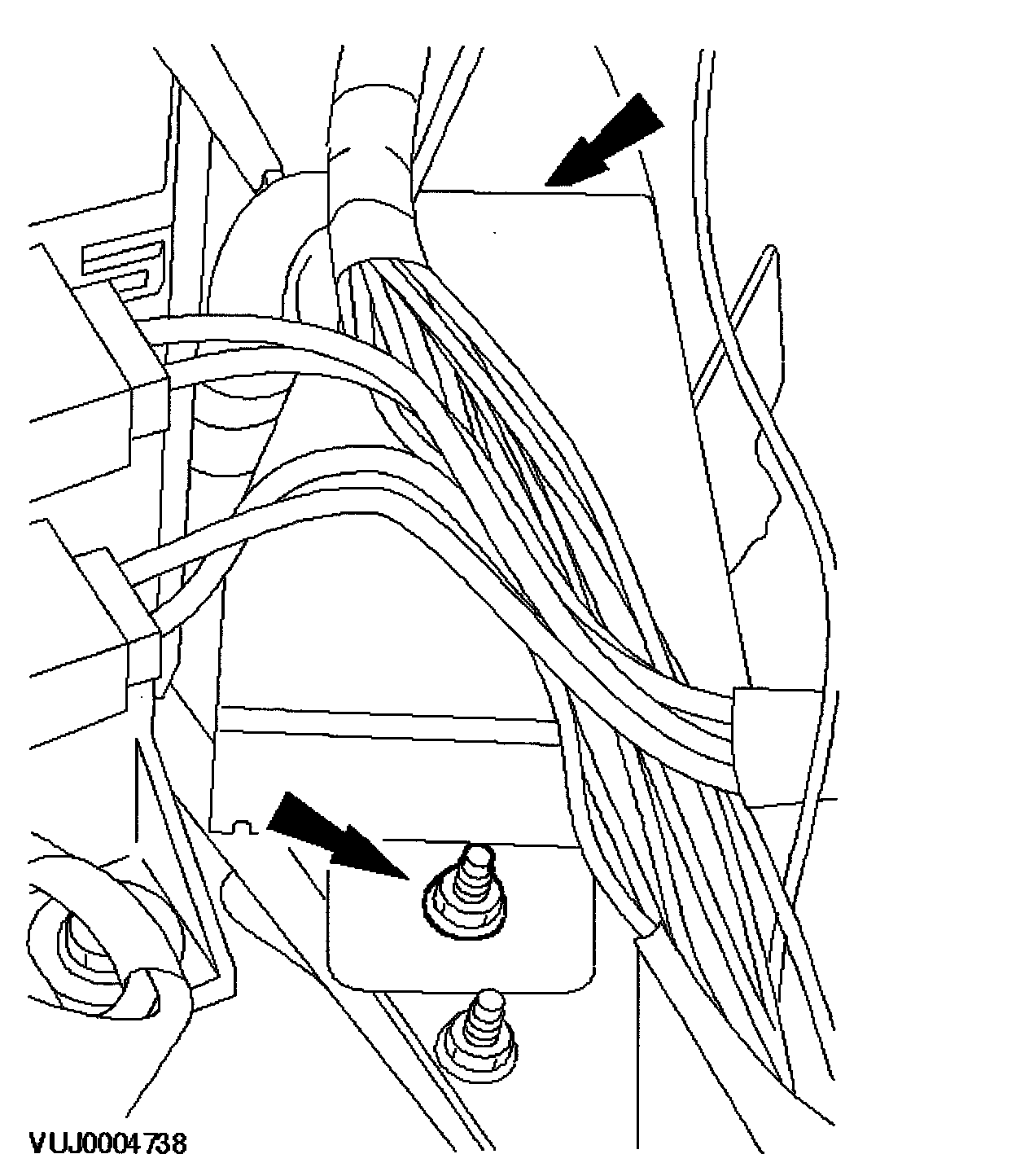

3. Detach the Transmission Control Module (TCM).





4. Remove the TCM.

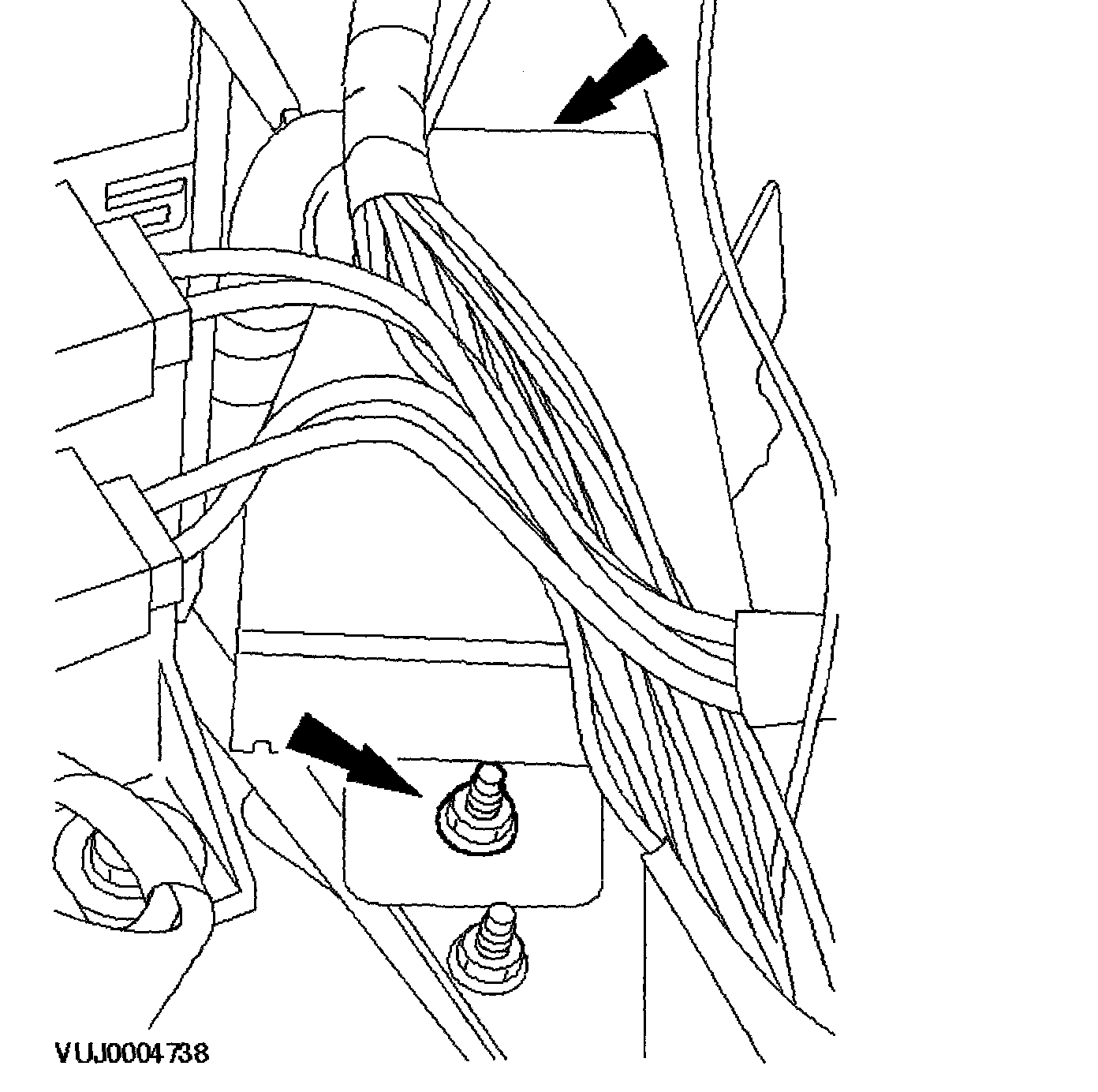

1. Disconnect the electrical connector.
2. Remove the TCM.

Installation





1. To install, reverse the removal procedure.
^ Tighten to 10 Nm.





2. Tighten to 10 Nm.
