System Specifications

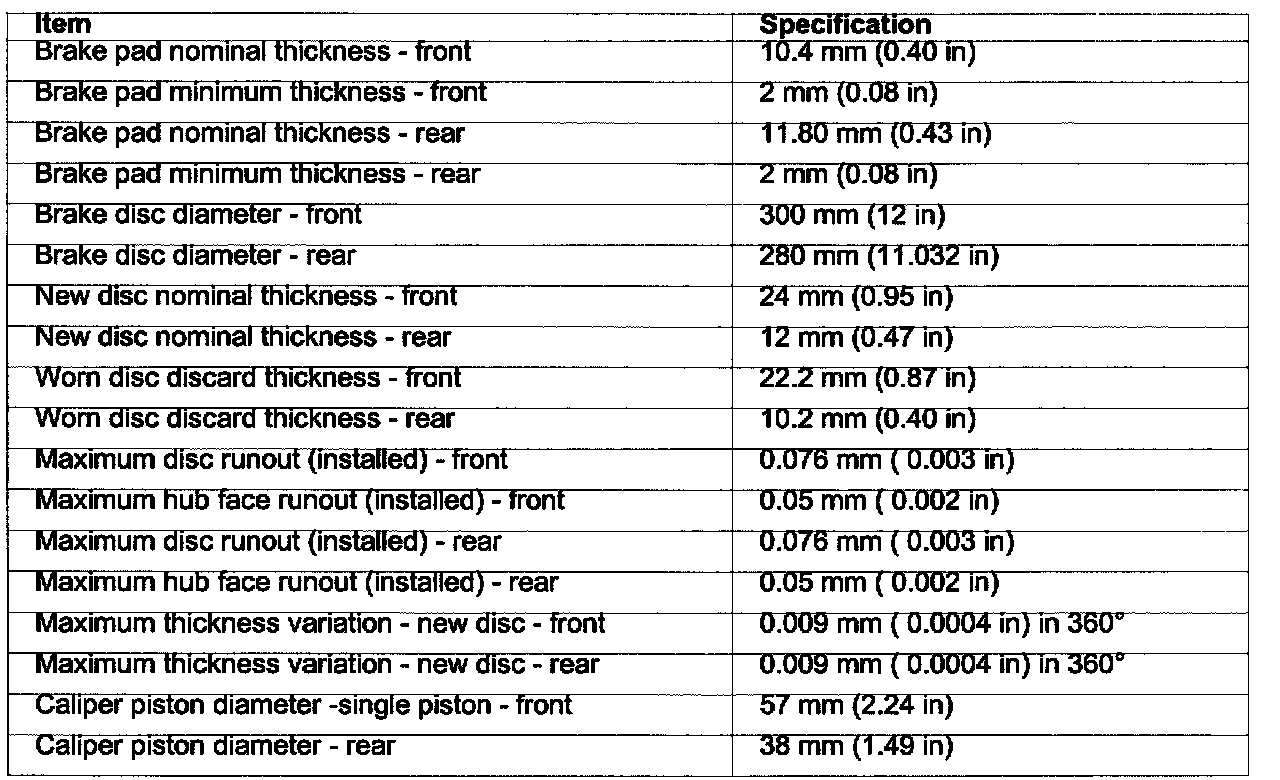

Brake Lining and Disc Specifications

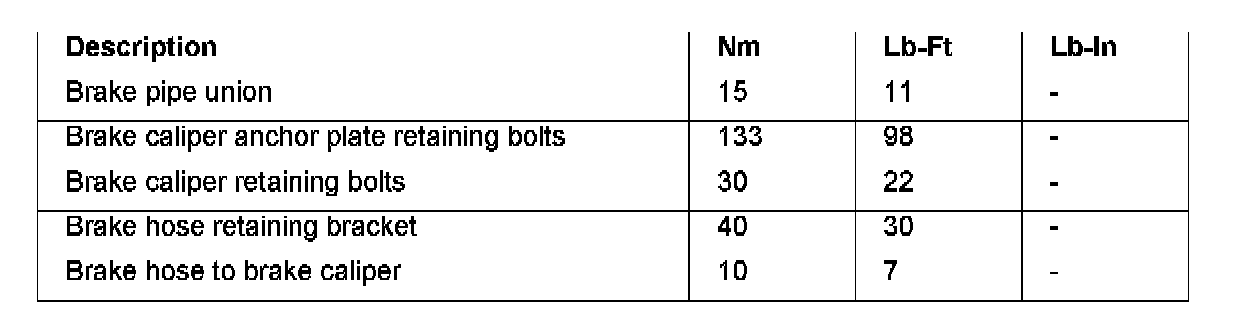

Front Disc Brake Torque Specifications

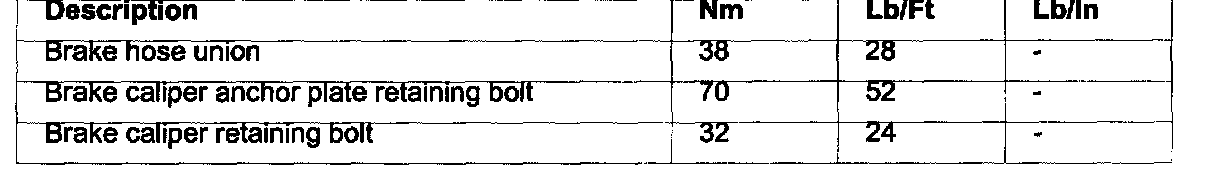

Rear Disc Brake Torque Specifications





Parking Brake and Actuation Torque Specifications





Hydraulic Brake Actuation Torque Specifications

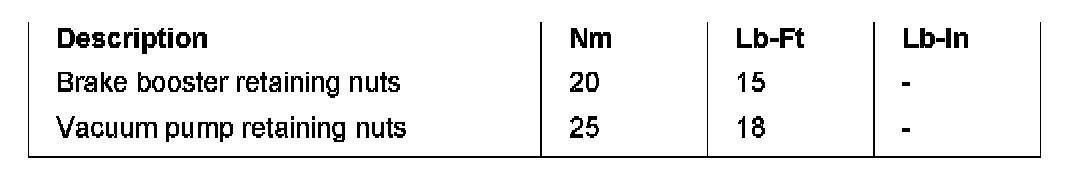

Power brake Actuation Torque Specifications





Anti-Lock Control Torque Specifications
