Steering Gear Alignment Markers

  1. The steering gear should always be centralized prior to steering column or suspension geometry adjustment.

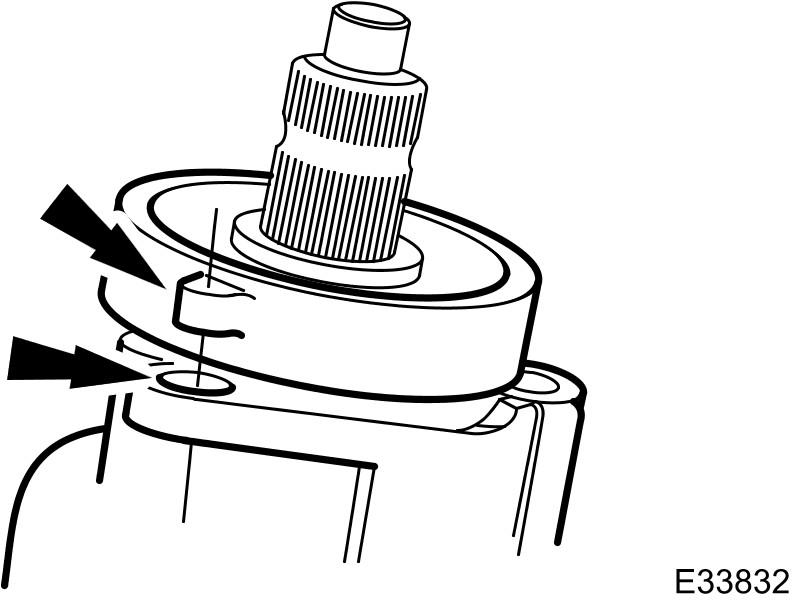

    • Centralization of the steering gear is achieved by aligning the marker on the centralizing cap with a locator on the pinion housing.
      GJ0000447Courtesy of JAGUAR CARS, INC.
