Navigation System Display Module - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to Specifications article.
    GJ0009187Courtesy of JAGUAR CARS, INC.
  2. Remove the instrument panel center reinforcement trim panel.
    • Release from the 5 clips.
    GJ0009188Courtesy of JAGUAR CARS, INC.

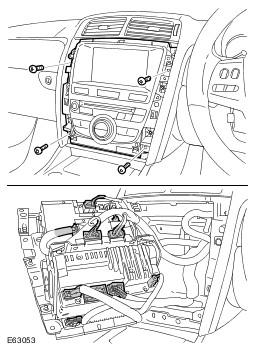

    3. CAUTION: Protect the surrounding trim from damage when changing the component.
  3. Release the navigation system module bracket.
    • Remove the 4 Torx screws.
    • Disconnect the 10 electrical connectors.
    • Release the assembly.
    GJ0009189Courtesy of JAGUAR CARS, INC.
    4. NOTE: Do not disassemble further if the component is removed for access only.
  4. Remove the navigation screen module.
    • Remove the trim panel veneer upper retaining clip.
    • Remove the 2 Torx screws.
    • Remove the 4 Torx bolts.
