Ride Height Adjustment: Notes

NOTE: Limited information available from manufacturer.

NOTE: Prior to performing wheel alignment, perform preliminary visual and mechanical inspection of wheels, tires and suspension components. Ride height calibration can only be performed using the Worldwide Diagnostic System (WDS).

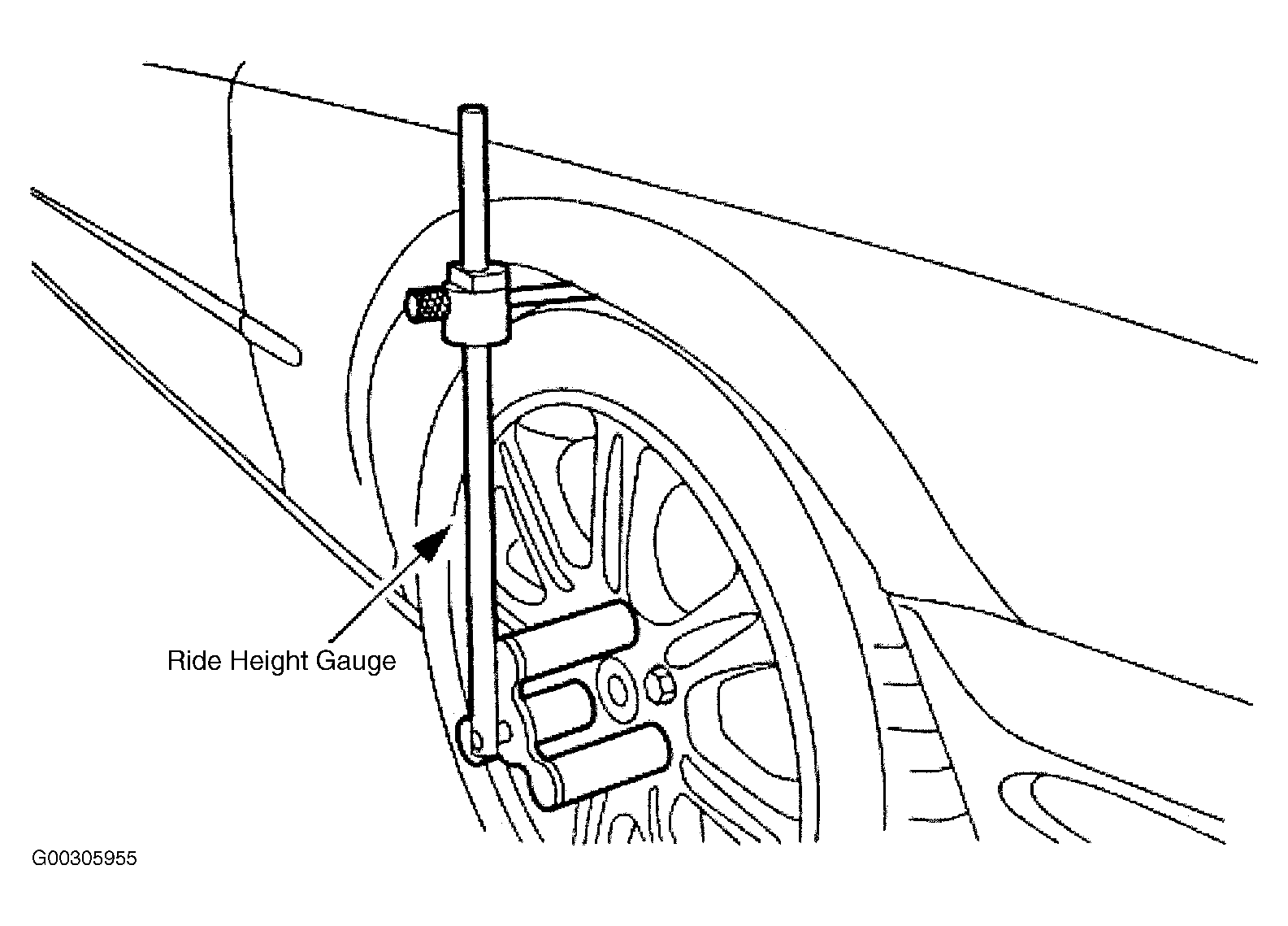

Fit ride height gauge ensuring gauge is installed in a vertical position. See Figure . Using the Jaguar approved diagnostic system carry out the ride height adjustments.
