Transmission Cooling - Description & Operation: Notes

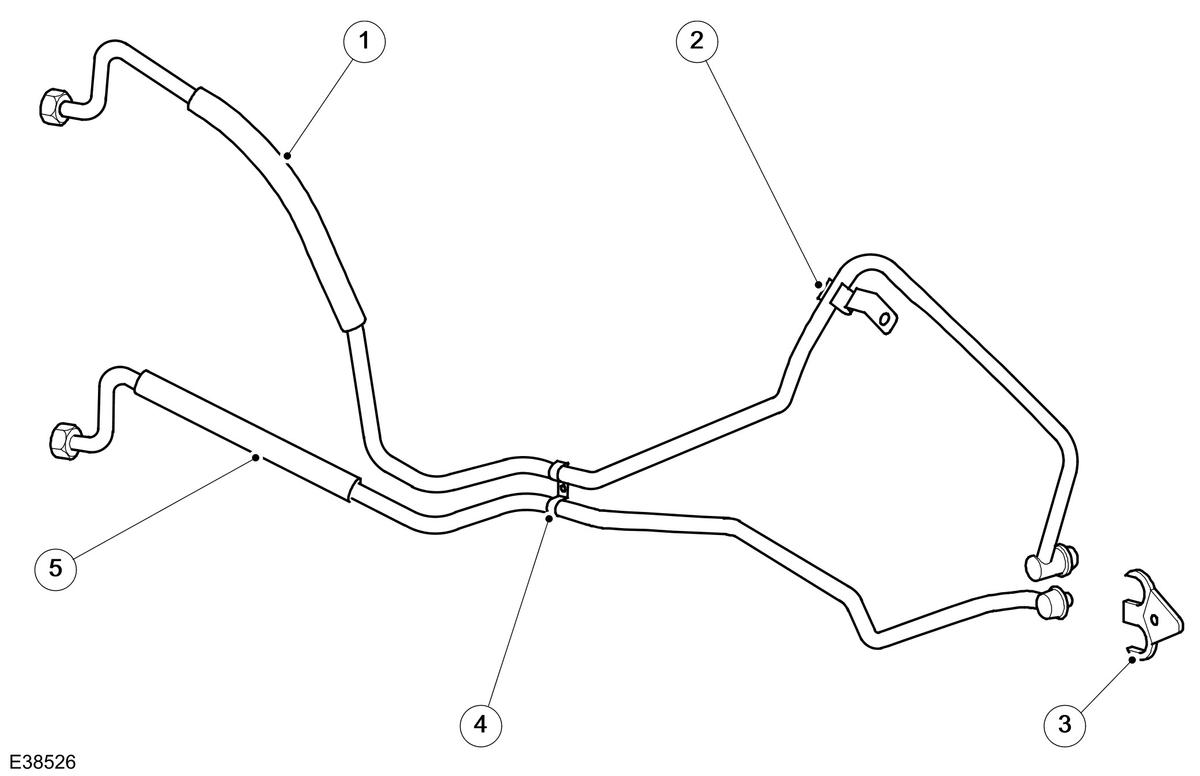

Fig 1: Transmission Cooling Overview

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Transmission fluid cooler supply tube
2	Transmission fluid cooler supply tube retaining bracket
3	Transmission fluid cooler tubes retaining plate
4	Transmission fluid cooler tubes retaining bracket
5	Transmission fluid cooler return tube
