Input Shaft Seal: Installation

  1. Using the special tool, install a new input shaft seal.

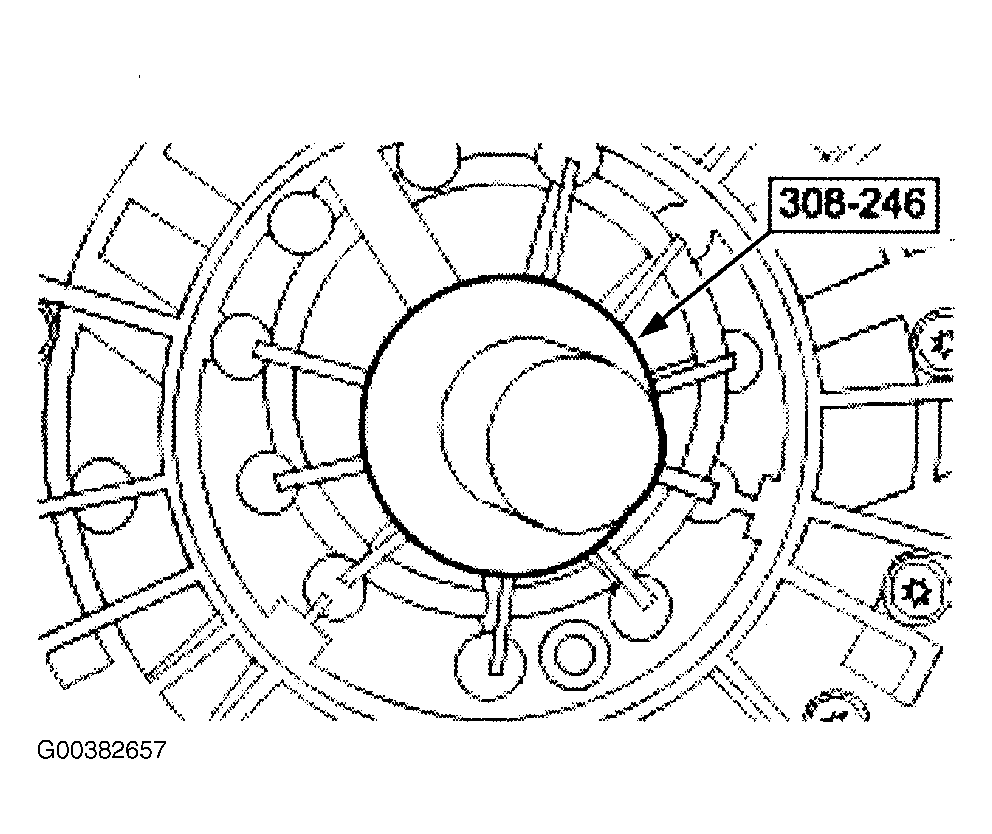

    Fig 1: Installing Input Shaft Seal
    G00382657Courtesy of JAGUAR CARS, INC.
    2. WARNING: Do not let the torque converter drop out of the transmission. Failure to follow this instruction may result in personal injury.
    NOTE: The torque converter hub must engage fully in the oil pump drive gear.

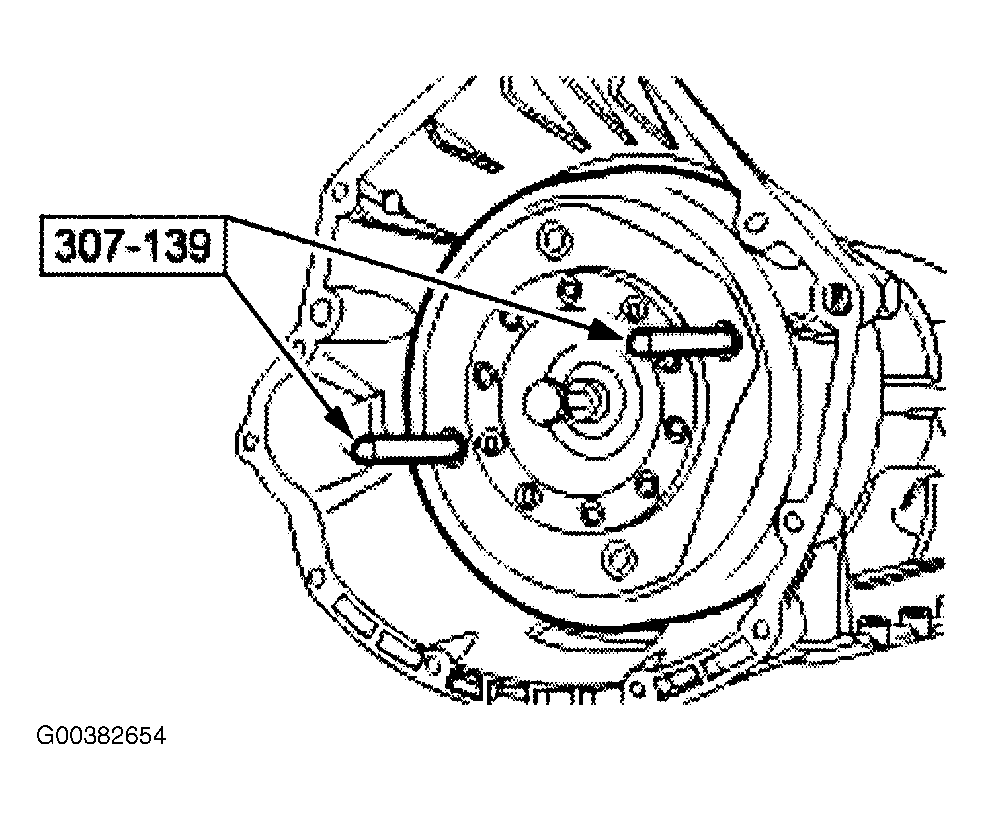

  2. Using the special tools, install the torque converter. See Figure.
  3. Install the transmission assembly. See REMOVAL & INSTALLATION .
