Engine Control Module (ECM) - Removal and Installation: Installation

    CAUTION: Make sure the electrical connector locates correctly in the ECM. Do not force or overtighten the electrical connector.
    CAUTION: Make sure the ECM support bracket is located correctly.
  1. To install, reverse the removal procedure.
    • Tighten to 5 Nm.

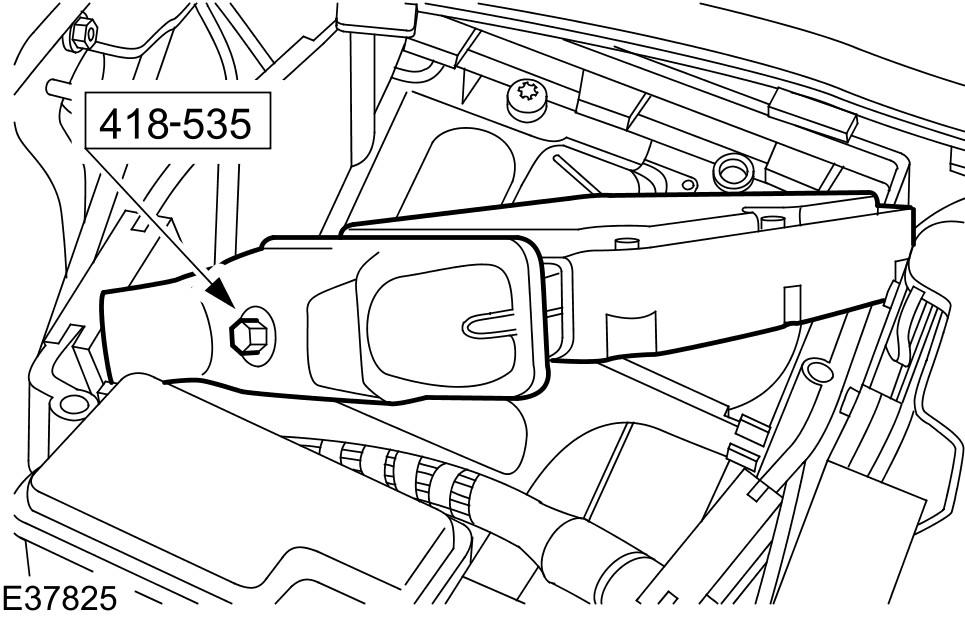

      GJ0002294Courtesy of JAGUAR CARS, INC.
