Engine Control Module (ECM) - Removal and Installation: Removal

  1. Disconnect the battery ground cable. Refer to Battery, Mounting and Cables .

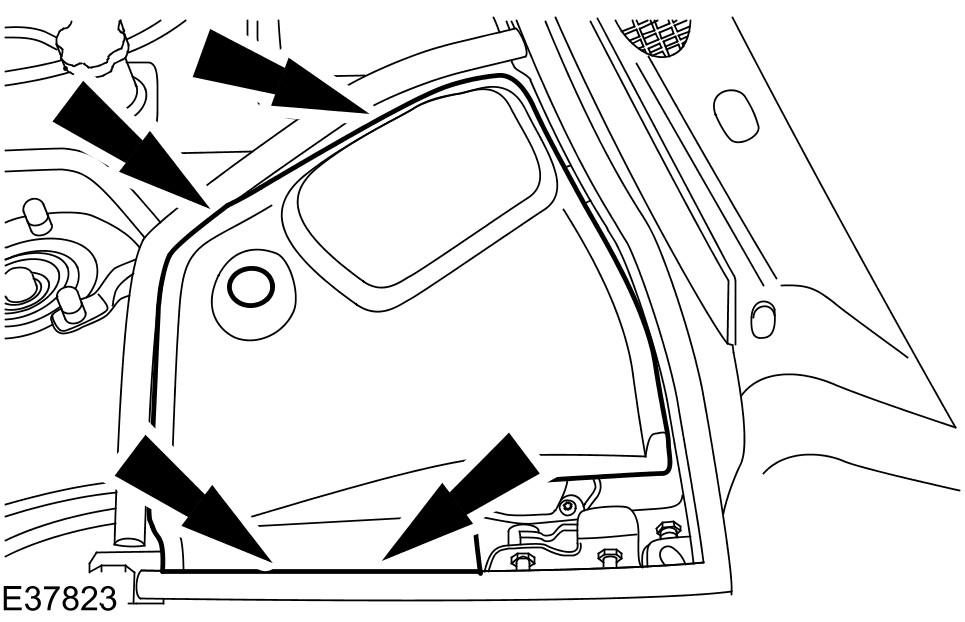

    GJ0002291Courtesy of JAGUAR CARS, INC.
  2. Remove the passenger side bulk head cover.

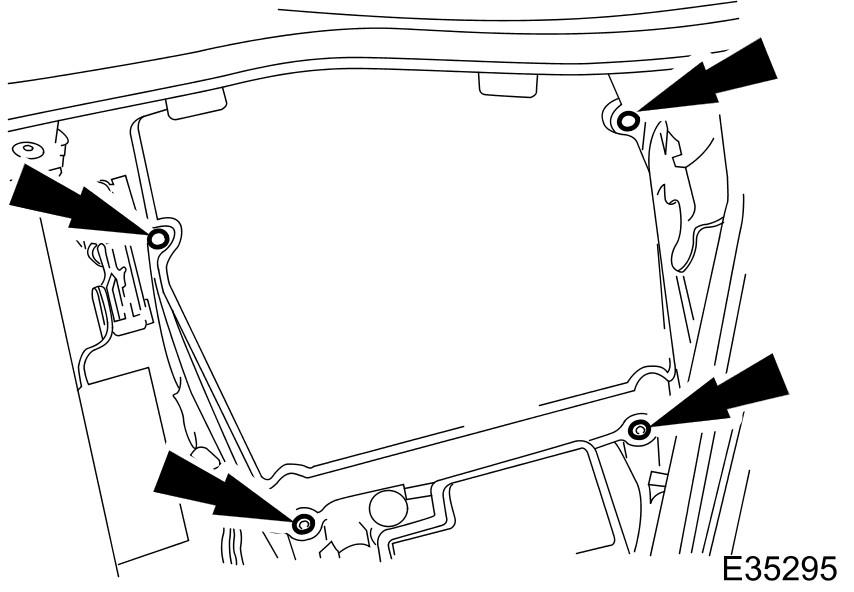

    GJ0002292Courtesy of JAGUAR CARS, INC.
  3. Remove the engine control module (ECM) cover.

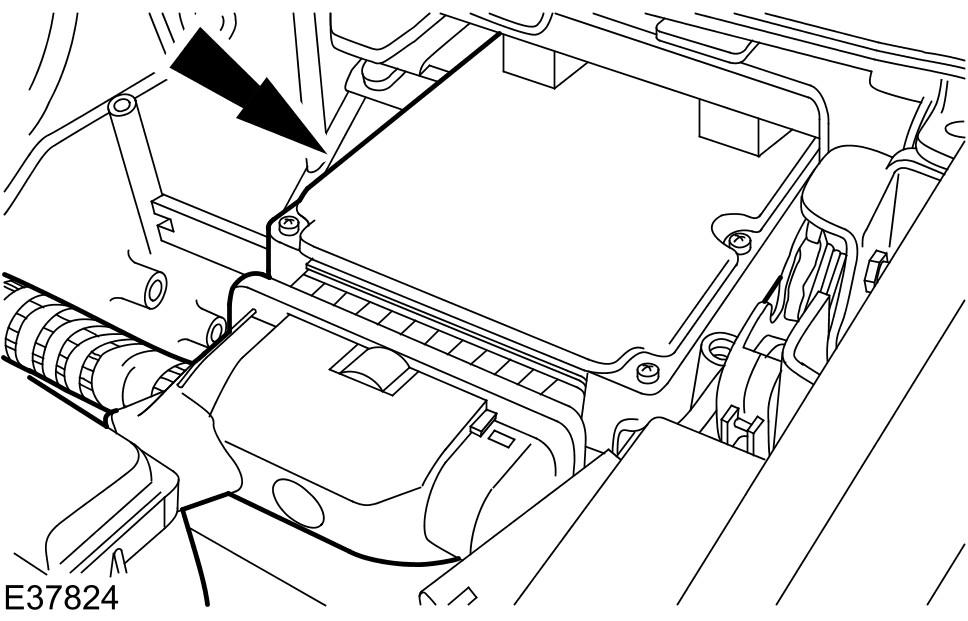

    GJ0002293Courtesy of JAGUAR CARS, INC.
  4. Detach the ECM.
    GJ0002294Courtesy of JAGUAR CARS, INC.
    5. NOTE: The ECM electrical connector retaining bolt remains captive in the electrical connector.
  5. Using the special tool remove the ECM.
