Accelerator Cable - Removal and Installation: Removal

NOTE: Right-hand drive vehicles shown, left-hand drive vehicles similar.

Courtesy of JAGUAR CARS, INC.

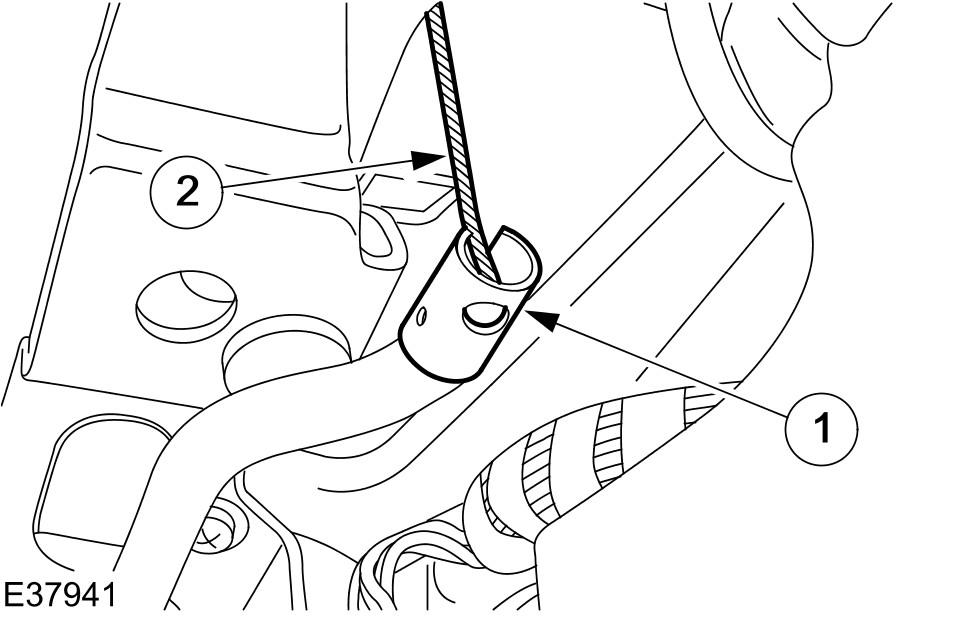

1. Remove and discard the accelerator cable retaining sleeve split pin.

   Courtesy of JAGUAR CARS, INC.

2. Detach the accelerator cable.
   1. Remove the accelerator cable retaining sleeve.
   2. Detach the accelerator cable.

   Courtesy of JAGUAR CARS, INC.

3. Remove the driver side bulkhead cover.

   Courtesy of JAGUAR CARS, INC.

4. Open the accelerator pedal position (APP) sensor cover.
   1. Release the APP sensor cover retaining clip.
   2. Open the APP sensor cover.

   Courtesy of JAGUAR CARS, INC.

5. Detach the accelerator cable.

   Courtesy of JAGUAR CARS, INC.

6. Detach the accelerator inner cable.

   Courtesy of JAGUAR CARS, INC.

NOTE: Note the accelerator cable position.
7. Remove the accelerator cable.
