Automatic Transmission/Transaxle

Transmission Description

Disassembled Views

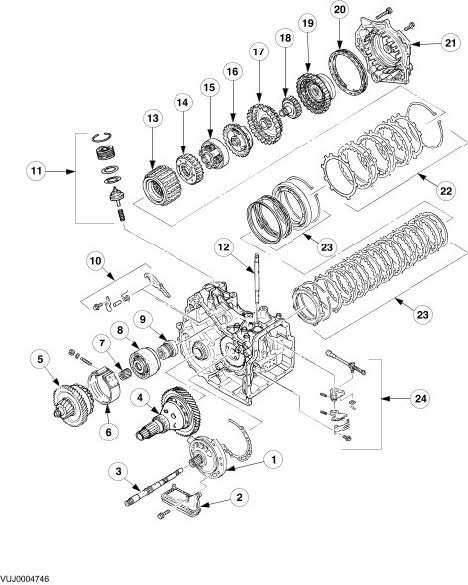

Transmission disassembled Views (Part 1):

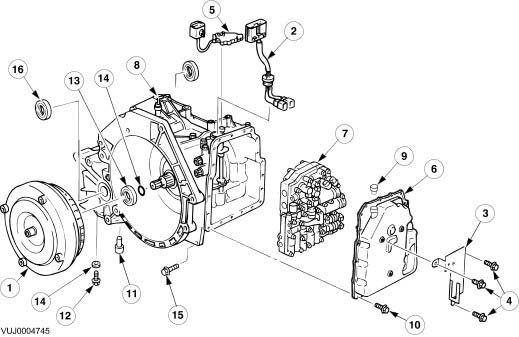

Transmission disassembled Views (Part 2):




Transmission disassembled Views (Part 3):




Transmission disassembled Views (Part 4):

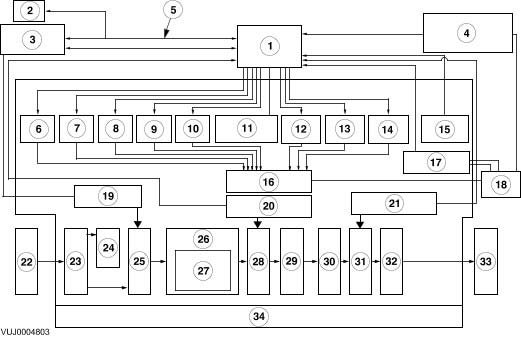

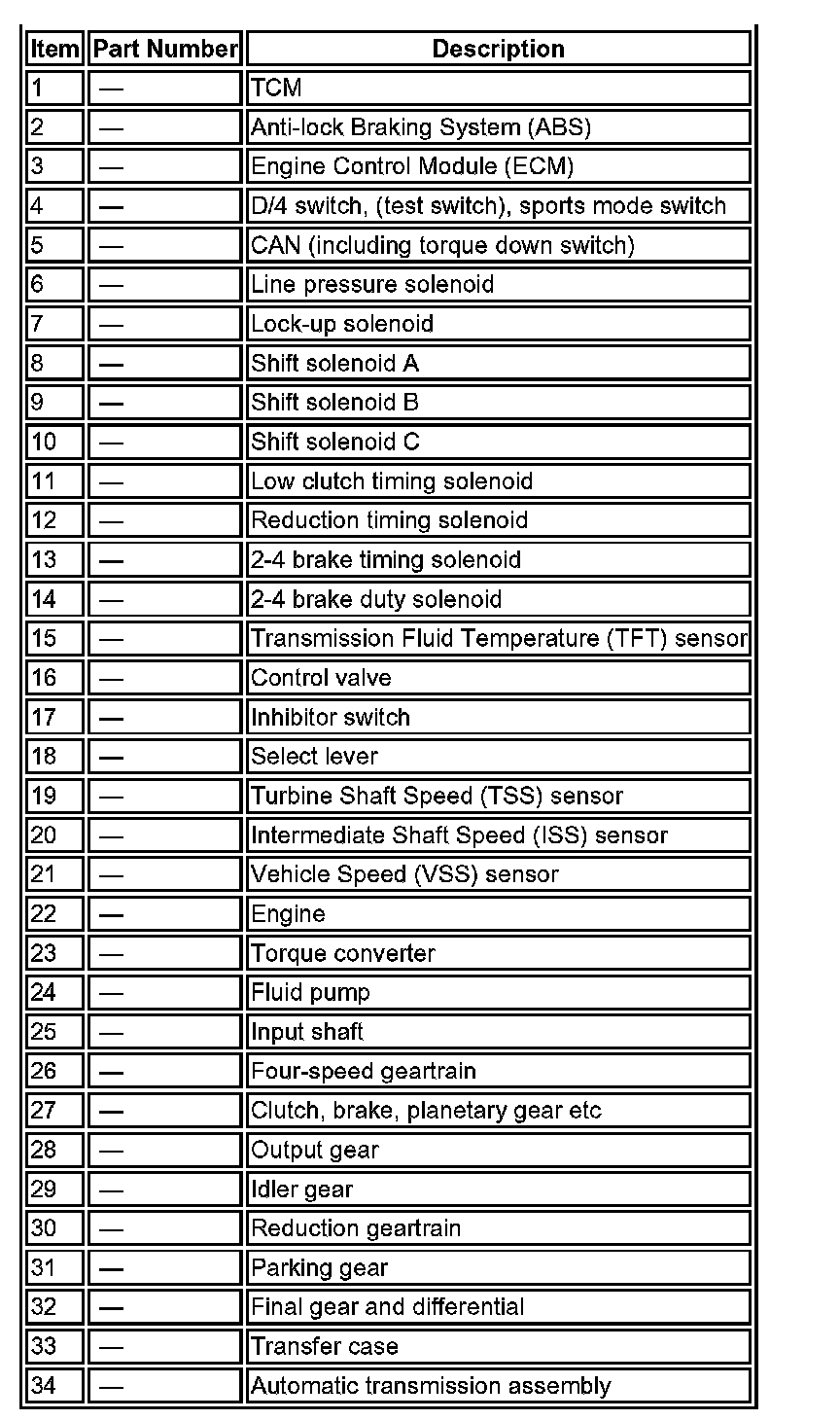

Overview

Part 1:




Part 2:
