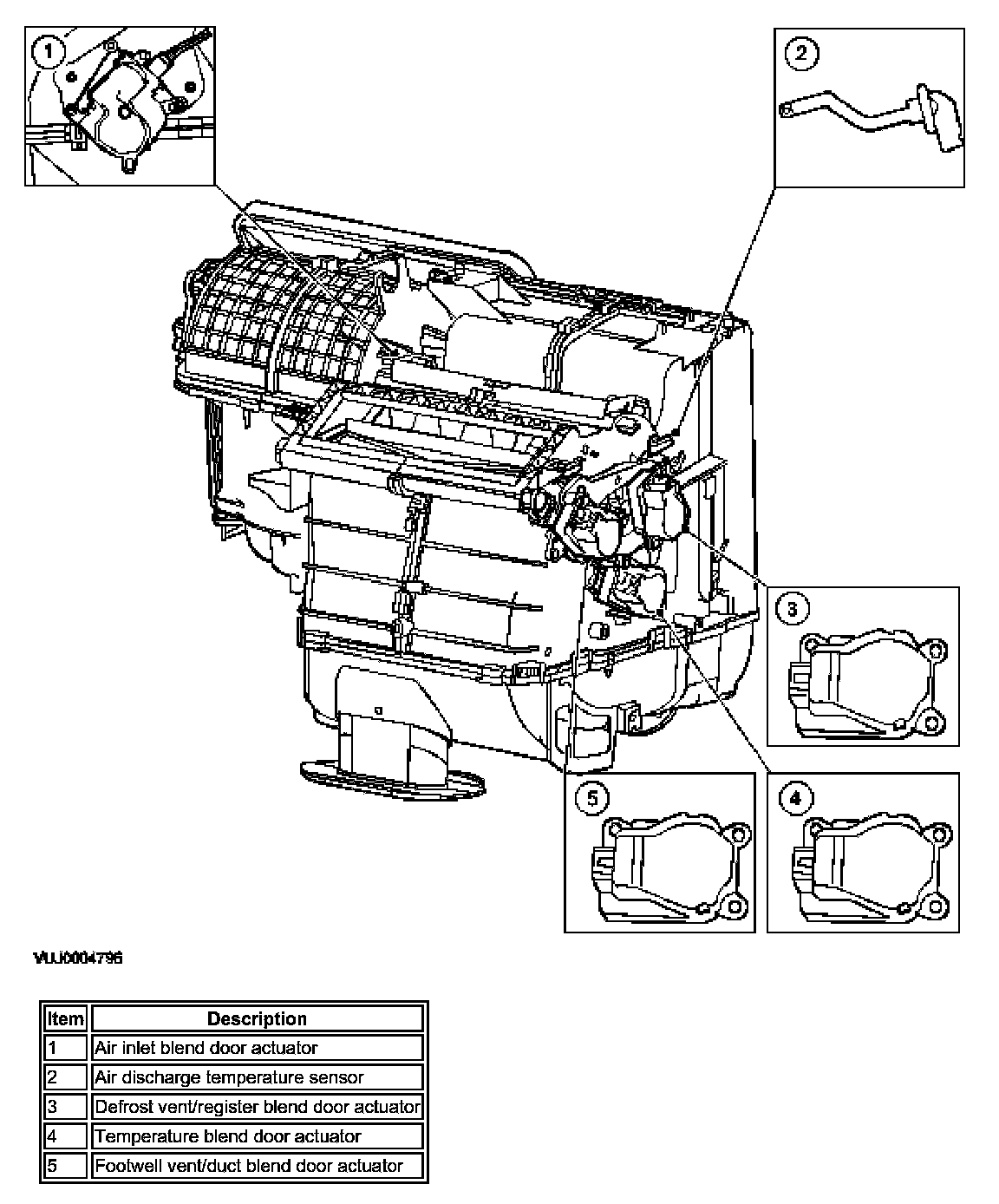

Control Components



Control Components


Control Components:






Automatic climate control with touch screen


Automatic Climate Control With Touch Screen:






Automatic climate control with liquid crystal display (LCD)


Automatic Climate Control With Liquid Crystal Display (LCD):






Manual climate control


Manual Climate Control:











This vehicle is fitted with one of the following climate control systems:
- manual climate control
- automatic climate control with a liquid crystal display (LCD) screen
- automatic climate control with a touch screen

Each system has a unique control panel located in the center console above the radio and audio controls.
