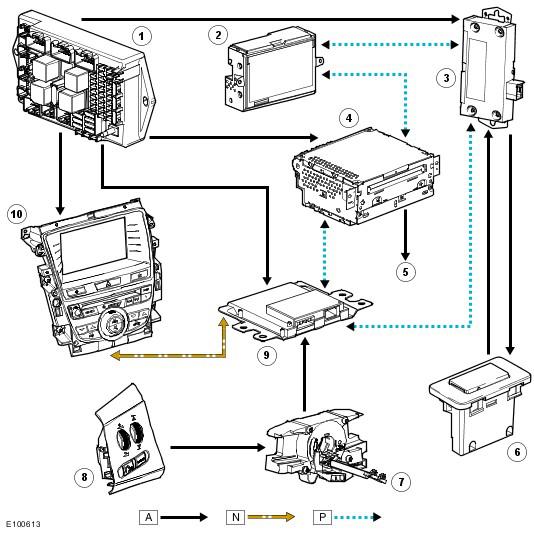

Control Diagram - Standard Audio System (From 2009 My)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | AJB |
| 2 | TSD |
| 3 | Auxiliary USB unit |
| 4 | Integrated audio module |
| 5 | To speakers |
| 6 | Auxiliary input panel |
| 7 | Clock spring |
| 8 | Remote audio switches |
| 9 | Information and entertainment module |
| 10 | Integrated control panel |
NOTE:
A = Hardwired; N = Medium speed controller area network (CAN) bus; P = MOST ring
