Control Diagram - Standard Audio System (Up To 2009 My)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

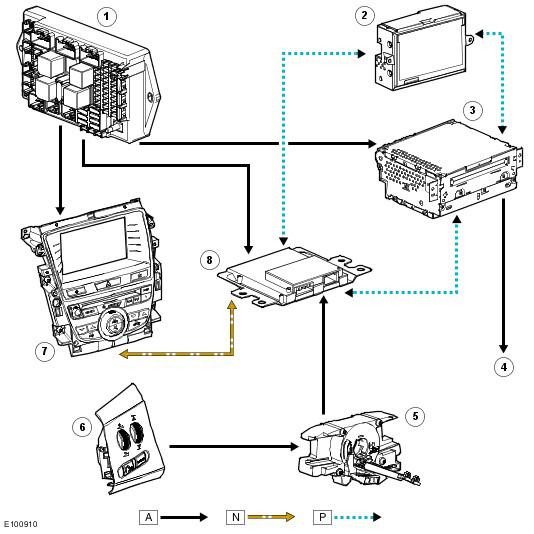

Fig 1: Control Diagram - Standard Audio System (Up To 2009 My)

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Auxiliary Junction Box (AJB)
2	TSD
3	Integrated audio module
4	To speakers
5	Clock spring
6	Remote audio switches
7	Integrated control panel
8	Information and entertainment module

NOTE: A = Hardwired; N = Medium speed controller area network (CAN) bus; P = MOST ring
