Hood Actuator
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

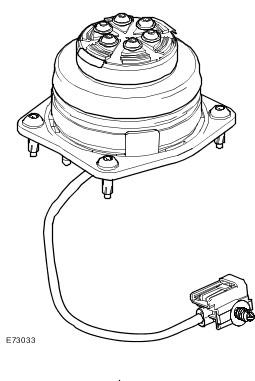

The hood actuators are pyrotechnic air bags. The hood actuators are located just forward of the hood latches on either side of the hood. The actuators comprise a pyrotechnic device to raise the hood, a secondary hood latch mechanism and a tether sleeve. Once fired a locking device mounted on top of the actuator couples with the secondary hood latch before the airbag inflates to raise the hood. This ensures that the hood can only deploy to a pre-determined height (approximately 130 mm). As the hood actuator is fired two prongs located in the secondary latch housing are moved out of their retaining clamp. The prongs are spring loaded to grip the secondary hood latch striker securing it to the actuator tether cone.

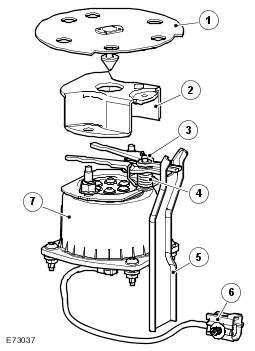

| Item Number | Description |
|---|---|
| 1 | Secondary hood latch striker plate |
| 2 | Secondary hood latch body |
| 3 | Secondary hood latch |
| 4 | Secondary hood latch spring |
| 5 | Secondary hood latch retaining bracket |
| 6 | Electrical connector |
| 7 | Hood actuator assembly |
