Pedestrian Contact Sensor (PCS)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

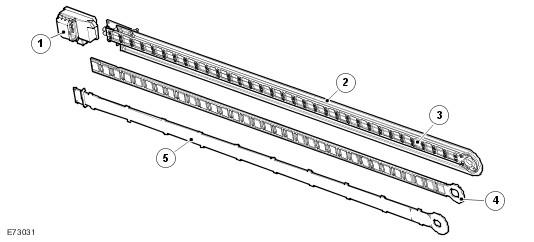

| Item Number | Description |
|---|---|
| 1 | Sensor module |
| 2 | Sensor backing strip/rear cover |
| 3 | Fibre optic cable |
| 4 | Foam insert |
| 5 | Sensor front cover |
The PCS is located in a slot behind the bumper foam on the front bumper beam and is secured with a single fixing.
At the end of the sensor next to the fixing there is a PCB and fibre optic transceiver, which is connected to a fibre optic cable configured in a loop. The PCS uses this fibre optic loop to detect an impact by measuring the amount of light returned to the fibre optic transceiver. A reduction in light levels occurs when the PCS is deformed by an impact. The PCS monitors the level of light returned from the loop, if a reduction of a predetermined magnitude is measured a trigger signal will be sent to the control module.
