Spark Plug: Service and Repair

Spark Plugs - Vehicles Without: Supercharger (18.20.02)

Removal
1. Remove the cover and disconnect the battery ground cable.
2. Remove the ignition coil-on-plugs.
3. Remove the remaining ignition coil-on-plugs.
4. Clean the area surrounding the spark plugs.

WARNING: Eye protection must be worn.

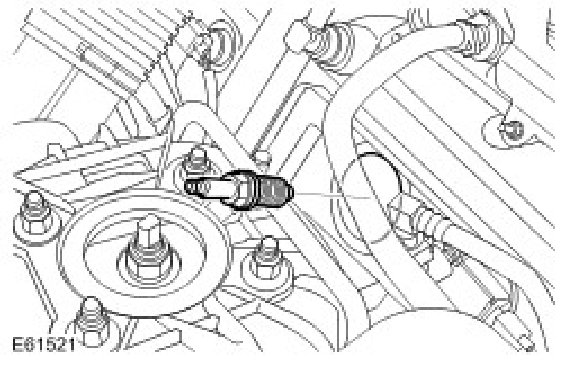

5. Remove the spark plugs.







Installation
1. Install the spark plugs.
- Tighten the spark plugs to 28 Nm (21 lb.ft).
2. Install the remaining coil-on-plugs.
3. Install the ignition coil-on-plug.
4. Connect the battery ground cable and install the cover.
