Transmission Control Module (TCM) and Main Control Valve Body - In-Vehicle Procedures: Installation

Courtesy of JAGUAR CARS, INC.

CAUTION: Make sure that when fully fitted, all seals protrude by the same amount.
CAUTION: Engage the selector lever with the groove in the piston rod.

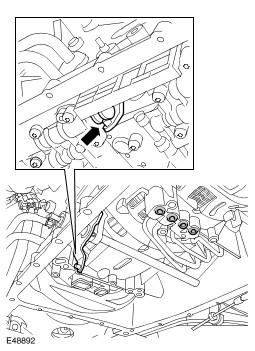

1. Install the valve body.
   • Clean the component mating faces.
   • Install new seals.
   • Install a new seal block.
   • Tighten the Torx screws to 8 Nm (6 lb.ft).
2. Install a new electrical connector sleeve.
   • Secure with retainer.
3. Connect the electrical connector.
4. Install the fluid pan. See Fluid Pan, Gasket and Filter .
5. Connect the battery ground cable. Refer to Specifications article.
6. Using WDS, calibrate a new TCM and valve body.
