3.1.5 Using Table 5: Notes

Table 5 contains specific Mode $06 related data. This table is to be used as a tool to cross reference any data received by a generic scan tool and identify any On-Board Diagnostic Monitor ID, PCODE, TID, Min, Max Values and scaling information.

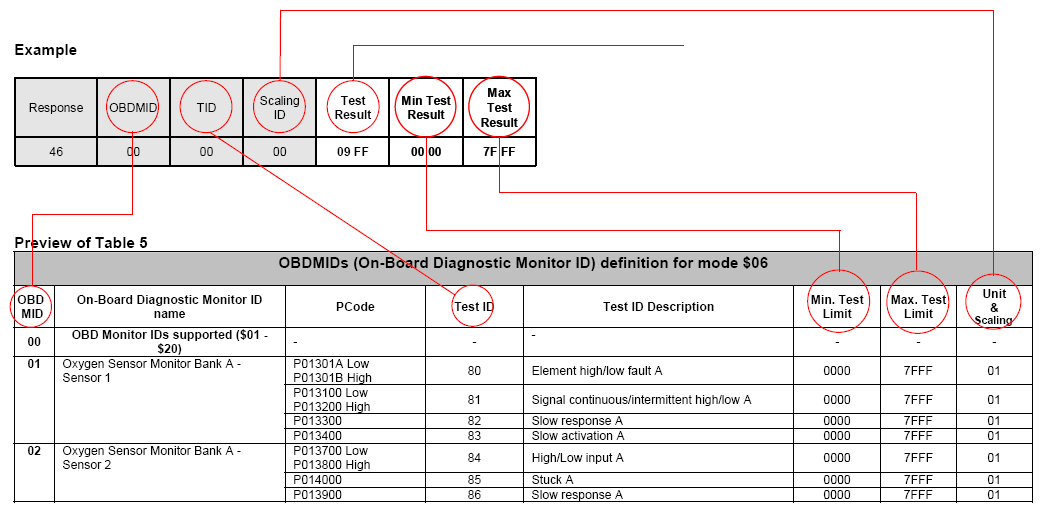

Fig 1: Identifying On-Board Data

Courtesy of JAGUAR CARS, INC.
