4.5.2 Monitoring Structure

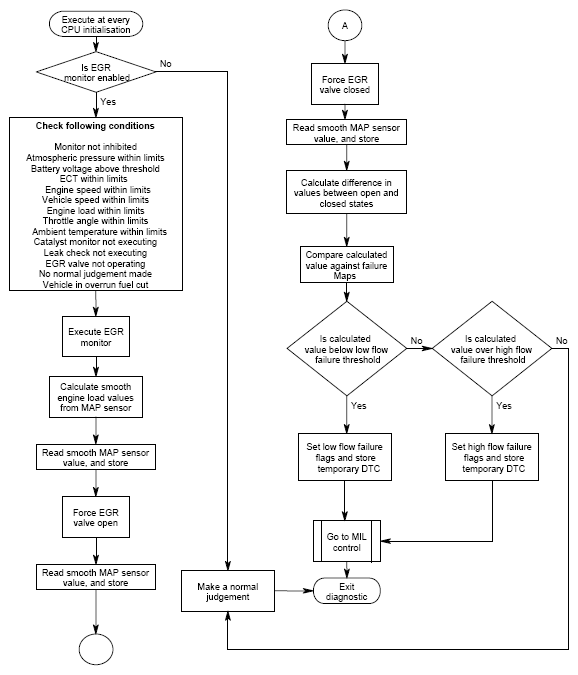

Fig 1: Monitoring Structure
Courtesy of JAGUAR CARS, INC.

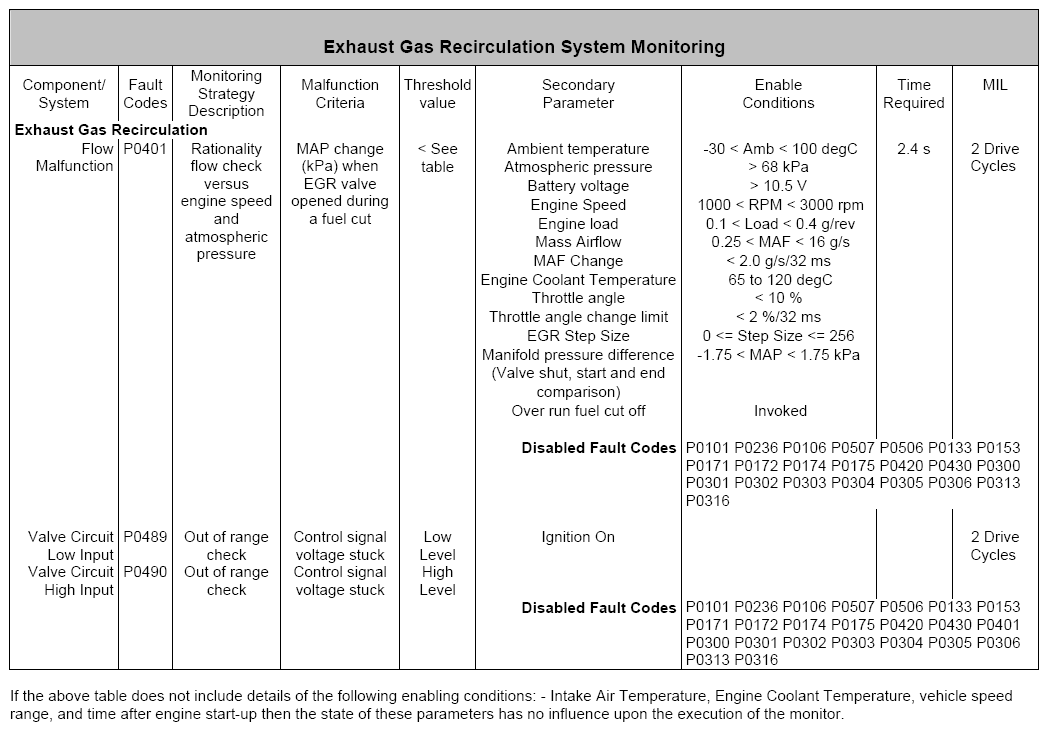

Fig 2: Exhaust Gas Recirculation System Monitoring (P0401, P0489, P0490)
Courtesy of JAGUAR CARS, INC.

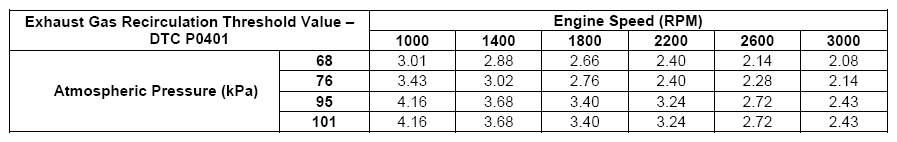

Fig 3: Exhaust Gas Recirculation Threshold Value (DTC P0401)
Courtesy of JAGUAR CARS, INC.
