External Controls - Description & Operation
>>
Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location

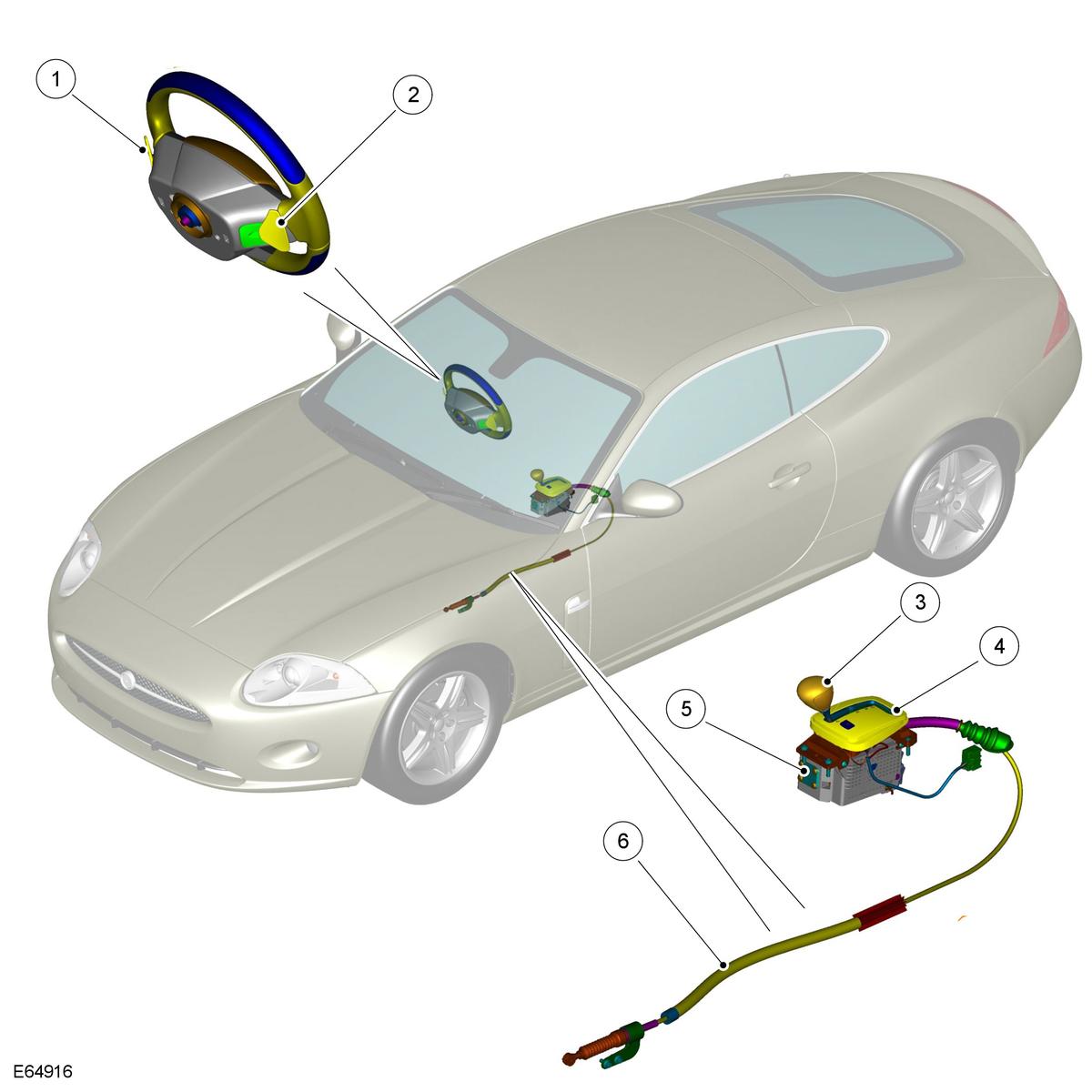

Fig 1: External Controls Component Location
Courtesy of JAGUAR CARS, INC.
Item Number
Description
1
Right Hand (RH) + gear change upshift paddle switch
2
Left Hand (LH) - gear change downshift paddle switch
3
Selector lever and gear knob
4
'L' gate
5
Selector lever mechanism assembly
6
Selector cable
