Crankshaft Position Sensor: Service and Repair

Crankshaft Position (CKP) Sensor

Removal

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
1 Remove the air deflector. For additional information, refer to Air Deflector

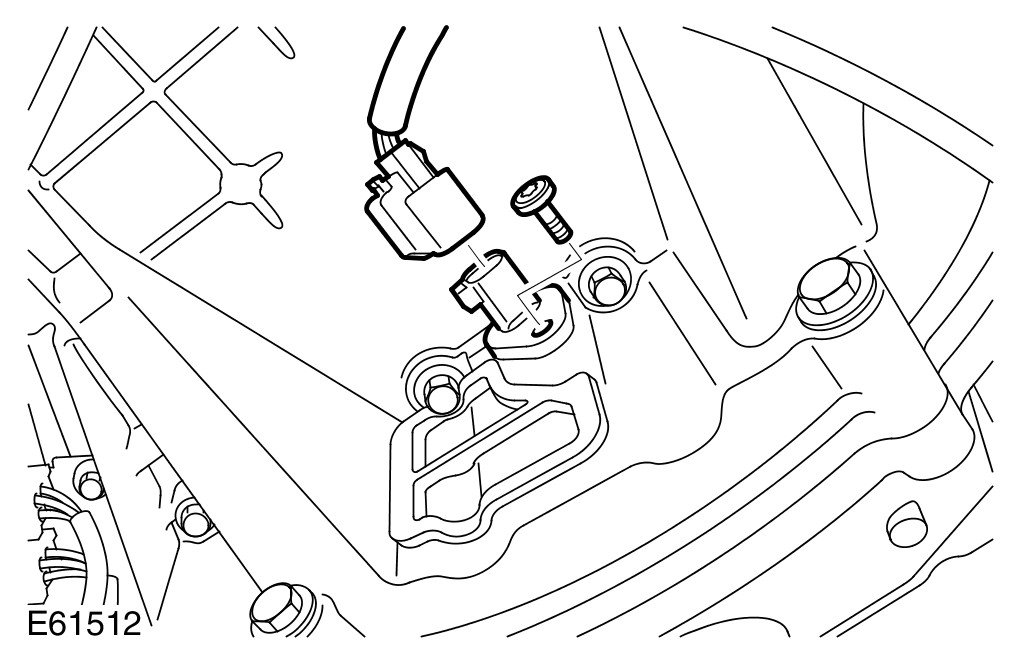

2 Disconnect the crankshaft position (CKP) sensor electrical connector.

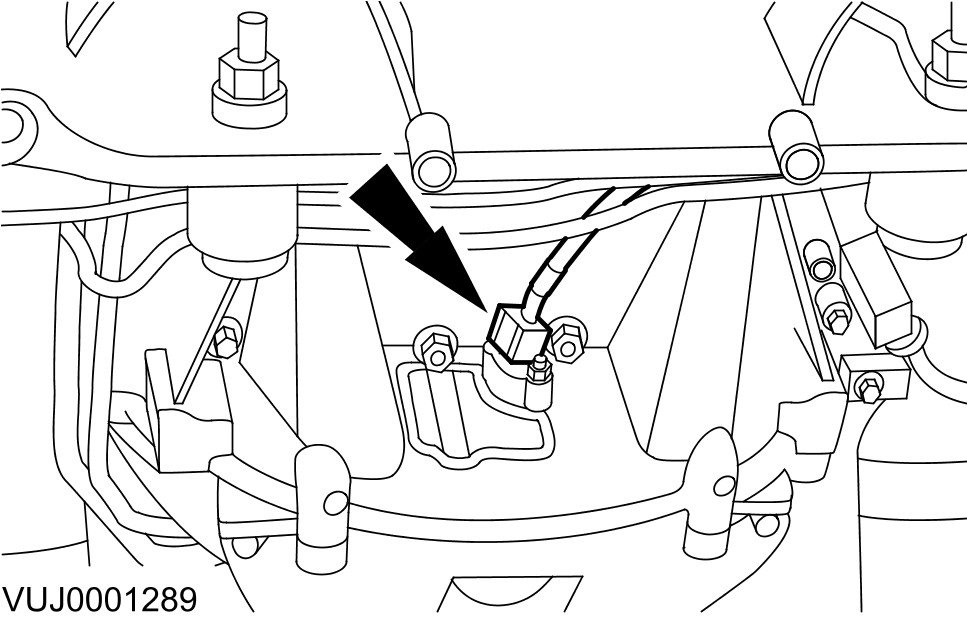

3 Remove the CKP sensor.

Installation





1 Install is the reverse of removal.
- Tighten to 7 Nm.
