4.1.2 Monitoring Structure

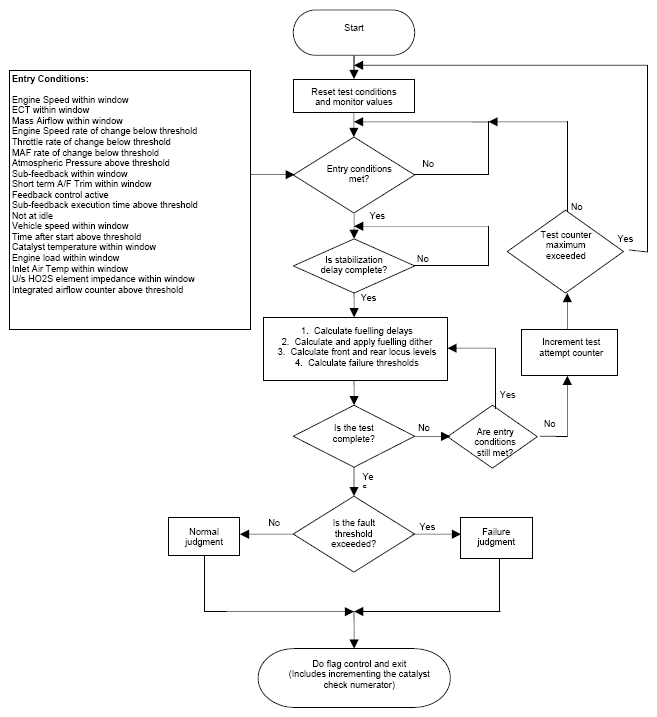

Fig 1: Monitoring Structure

Courtesy of JAGUAR CARS, INC.

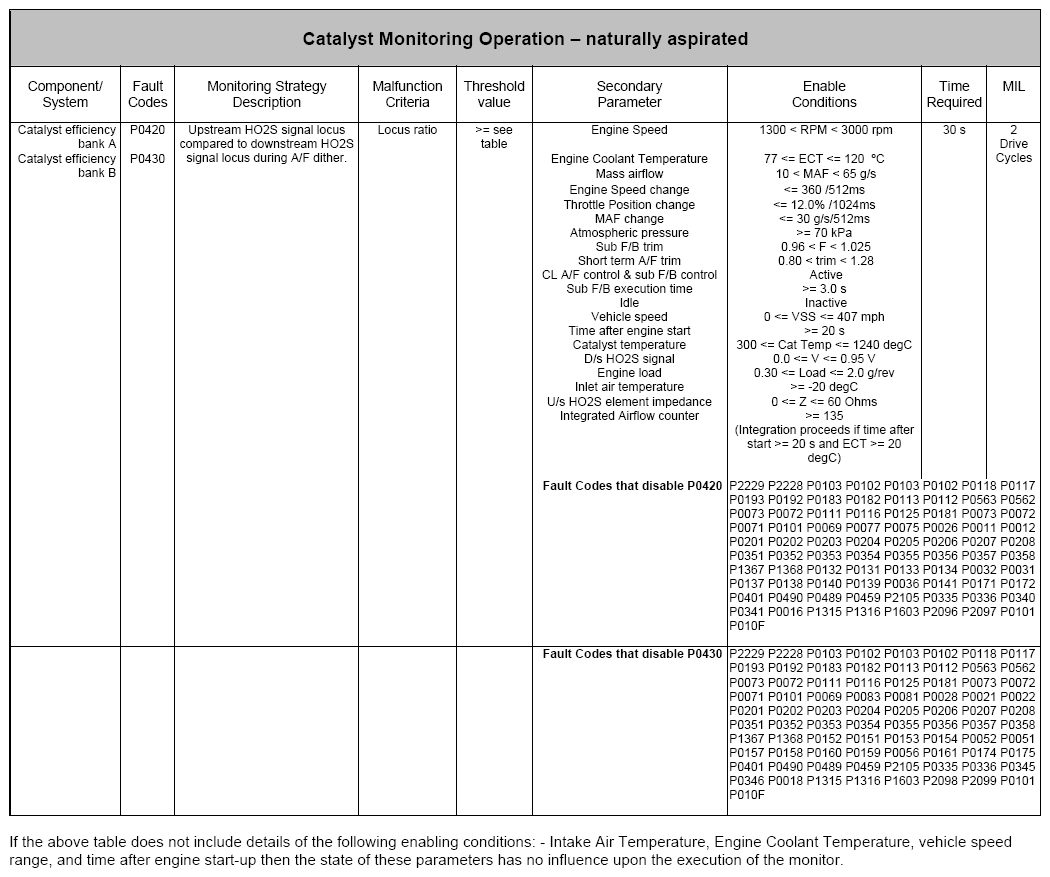

Fig 2: Catalyst Monitoring Operation - Naturally Aspirated (P0420, P0430)

Courtesy of JAGUAR CARS, INC.

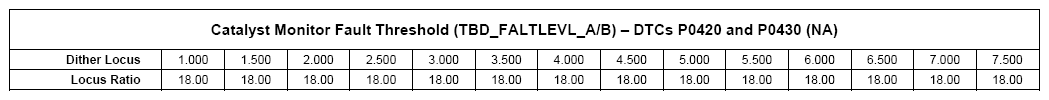

Fig 3: Catalyst Monitoring Fault Chart

Courtesy of JAGUAR CARS, INC.

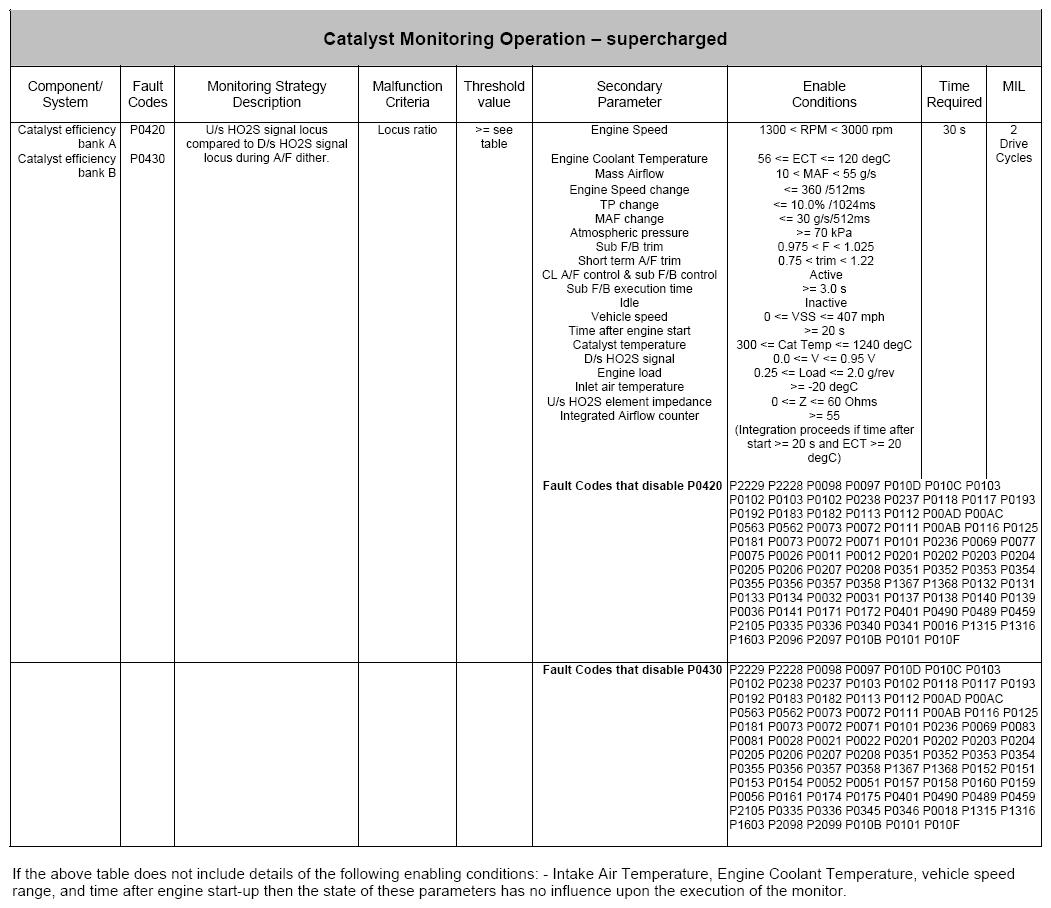

Fig 4: Catalyst Monitoring Operation - Supercharged (P0420, P0430)

Courtesy of JAGUAR CARS, INC.

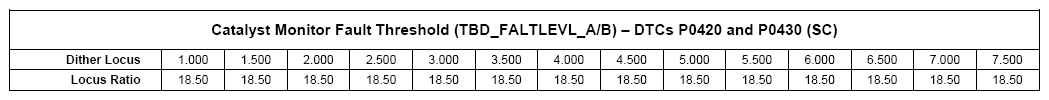

Fig 5: Catalyst Monitoring Fault Chart

Courtesy of JAGUAR CARS, INC.
