4.5.2 Monitoring Structure

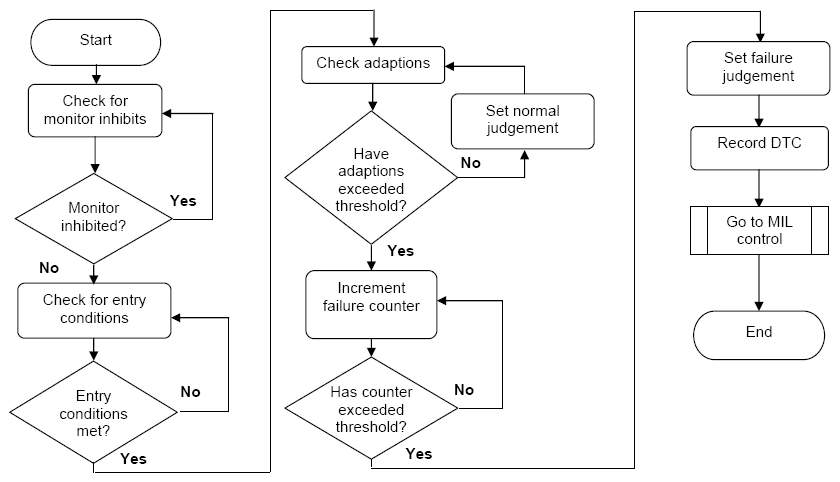

Fig 1: Monitoring Structure

Courtesy of JAGUAR CARS, INC.

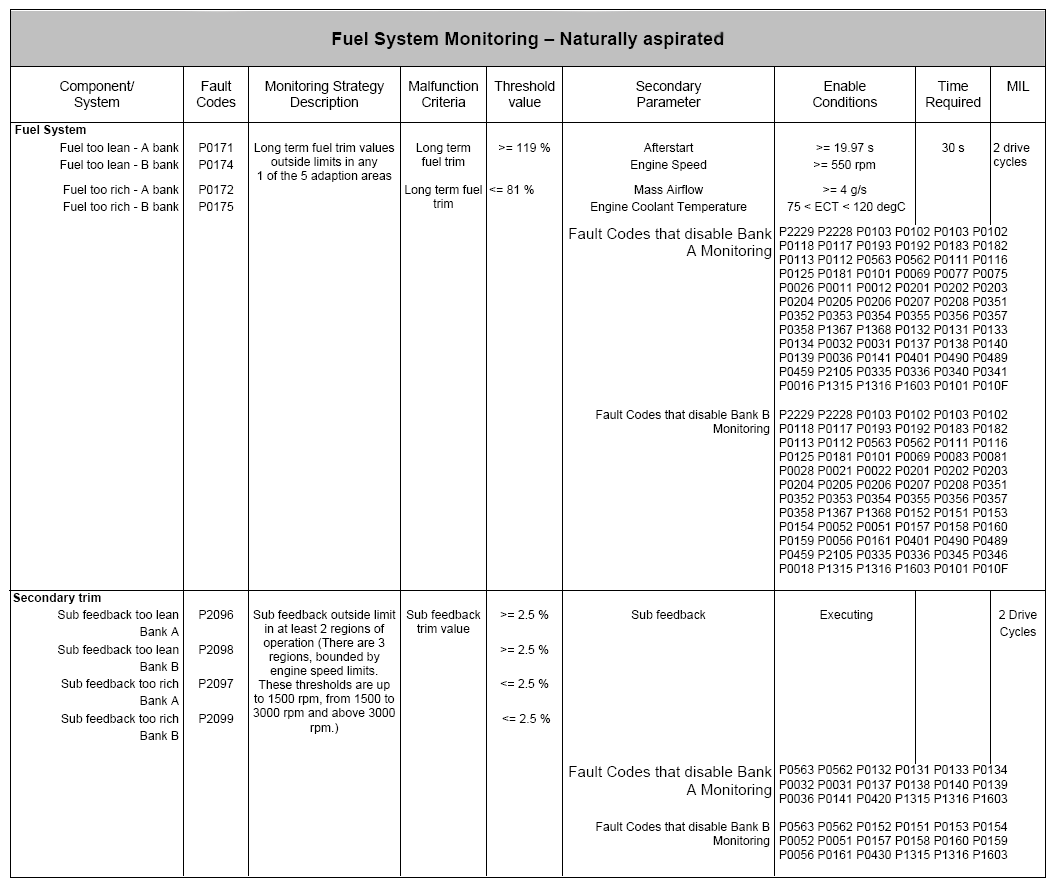

Fig 2: Fuel System Monitoring - Naturally Aspirated (P0171, P0172, P0174, P0175, P2096, P2097, P2098, P2099)

Courtesy of JAGUAR CARS, INC.

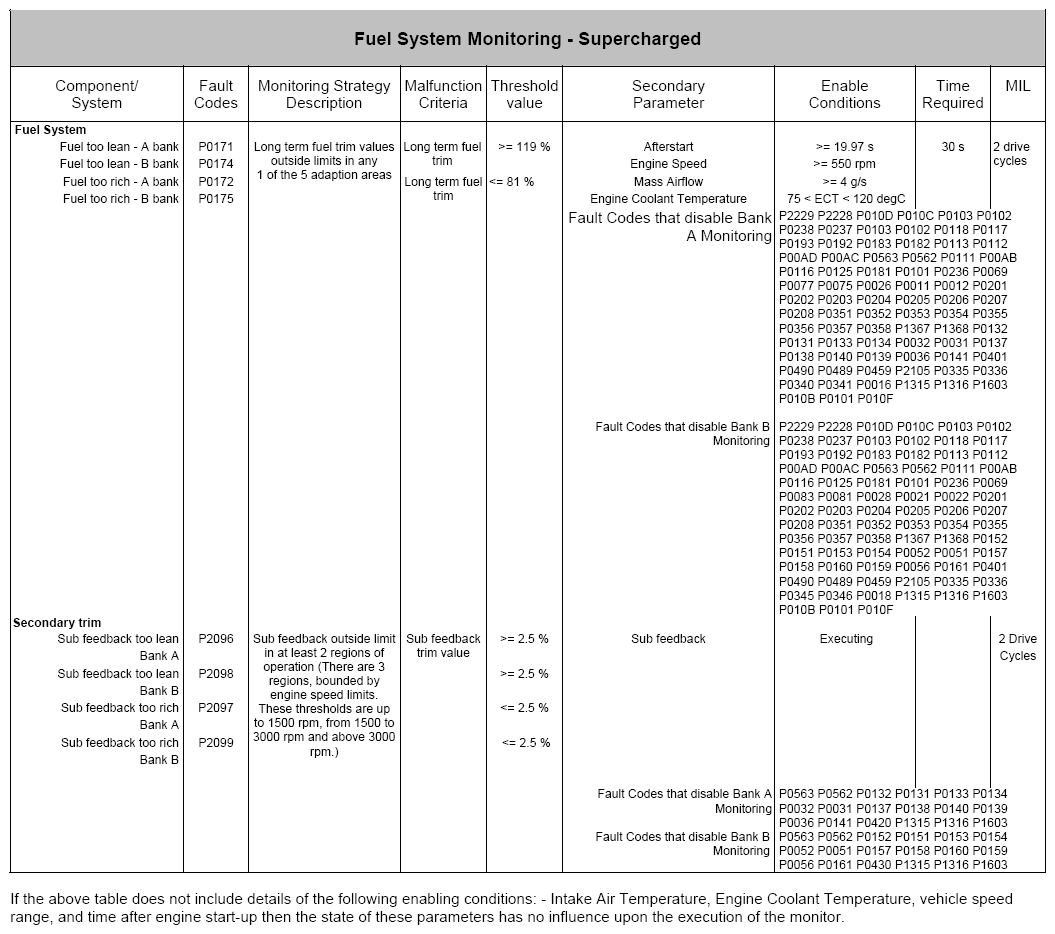

Fig 3: Fuel System Monitoring - Supercharged (P0171, P0172, P0174, P0175, P2096, P2097, P2098, P2099)

Courtesy of JAGUAR CARS, INC.
