Table 5

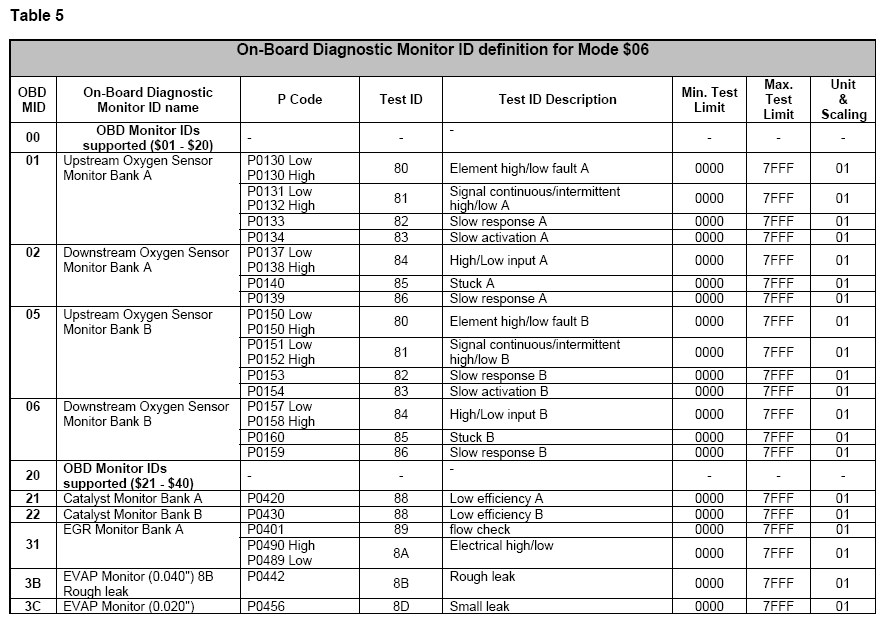

Fig 1: On-Board Diagnostic Monitor ID Definition For Mode $06 (1 Of 2) (P0130, P0131, P0132, P0133, P0134, P0137, P0138, P0139, P0140. P0150, P0151, P0152, P0153, P0154, P0157, P0158, P0159, P0160, P0401, P0420, P0430, P0442, P0456, P0489, P0490)

Courtesy of JAGUAR CARS, INC.

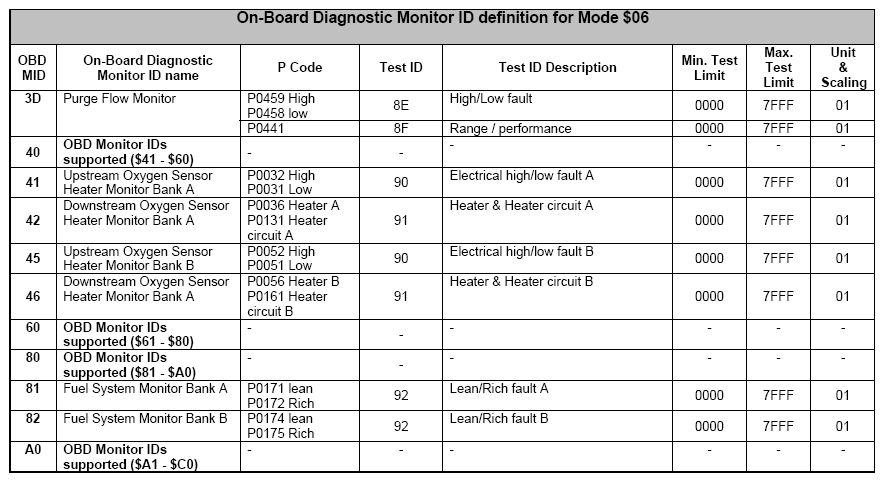

Fig 2: On-Board Diagnostic Monitor ID Definition For Mode $06 (2 Of 2) (P0031, P0032, P0036, P0051, P0052, P0058, P0131, P0161, P0171, P0172, P0174, P0175, P0441, P0458, P0459)

Courtesy of JAGUAR CARS, INC.
