4.30.1 Monitoring Structure

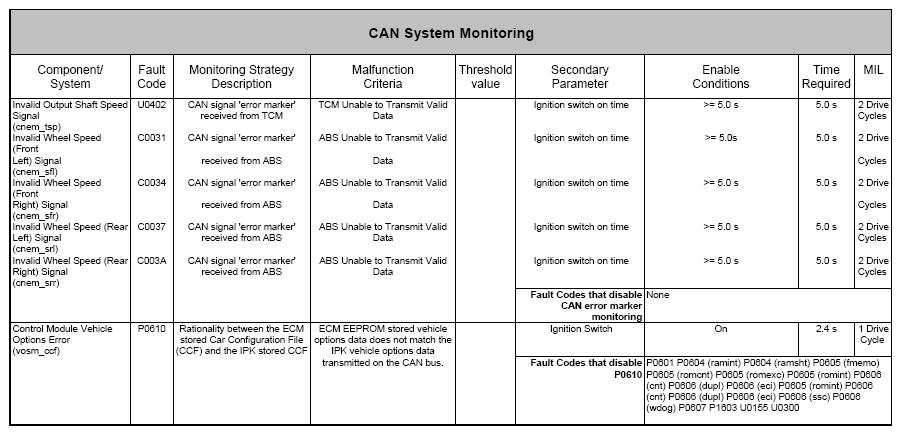

Fig 1: CAN System Monitoring (C003A, C0031, C0034, C0037, P0610, U0402)

Courtesy of JAGUAR CARS, INC.

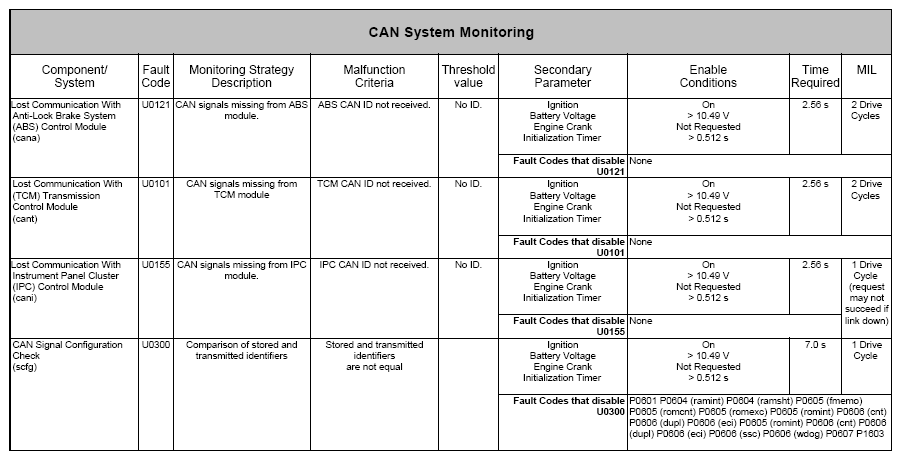

Fig 2: CAN System Monitoring (U0101, U0121, U0155, U0300)

Courtesy of JAGUAR CARS, INC.

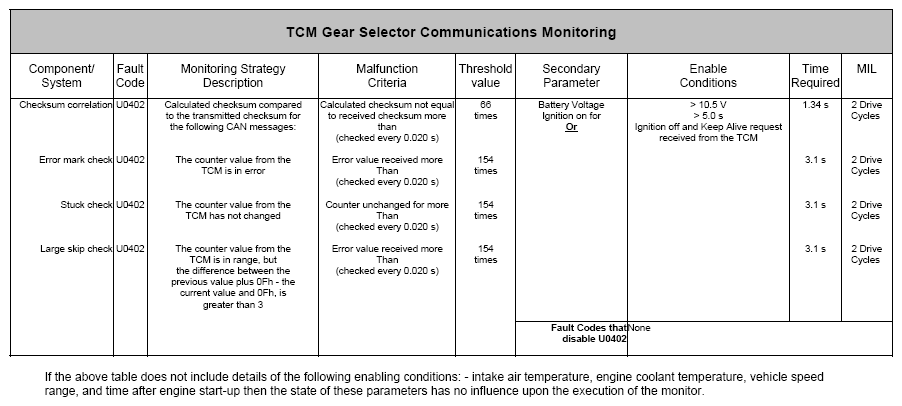

Fig 3: TCM Gear Selector Communications Monitoring (U0402)

Courtesy of JAGUAR CARS, INC.
