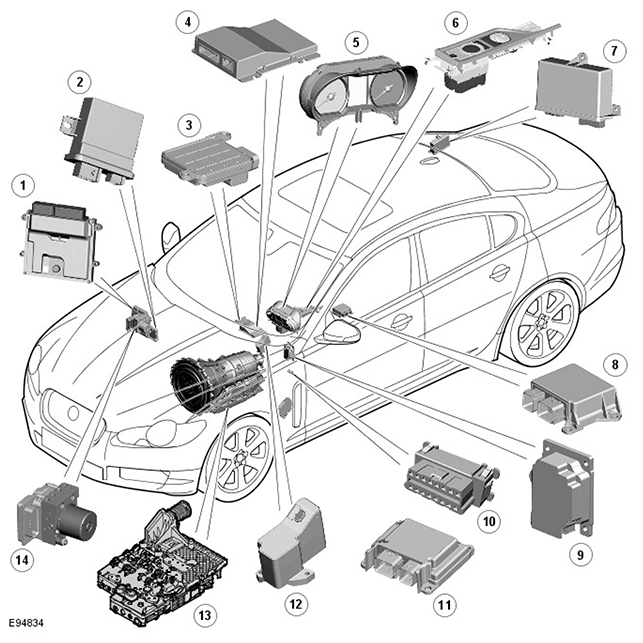

Component Location - High Speed Can Bus
| ITEM | DESCRIPTION |
|---|---|
|
NOTE:
LHD vehicle shown
|
|
| 1 | ECM - V8 shown |
| 2 | Headlamp leveling control module |
| 3 | Occupant classification system control module |
| 4 | Adaptive damping control module |
| 5 | Instrument cluster |
| 6 | Electronic transmission selector |
| 7 | Electronic Parking Brake (EPB) module |
| 8 | RCM (restraints control module) |
| 9 | Adaptive speed control module |
| 10 | Diagnostic socket |
| 11 | Pedestrian protection control module |
| 12 | Electric steering column lock |
| 13 | TCM |
| 14 | ABS (anti-lock brake system) module |
