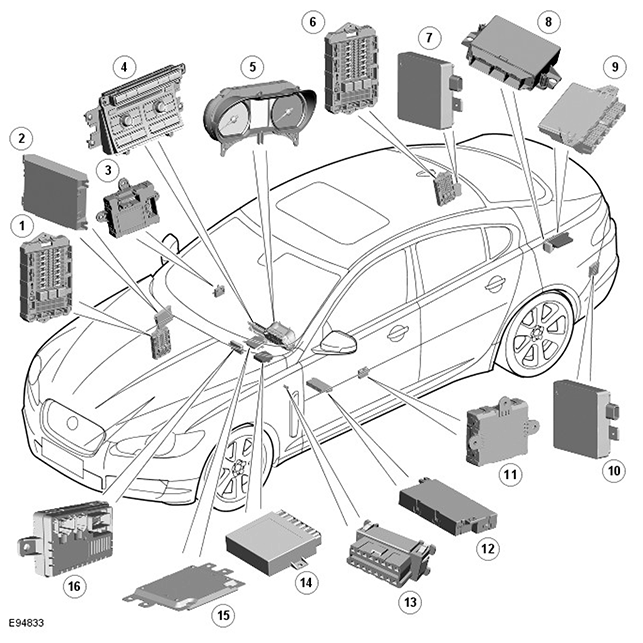

Component Location - Medium Speed Can Bus
| ITEM | DESCRIPTION |
|---|---|
|
NOTE:
LHD vehicle shown
|
|
| 1 | CJB |
| 2 | ATC module |
| 3 | Passenger door module |
| 4 | Audio system control panel |
| 5 | Instrument cluster |
| 6 | RJB |
| 7 | RH blind spot monitoring module |
| 8 | Parking aid module |
| 9 | Keyless vehicle module |
| 10 | LH blind spot monitoring module |
| 11 | Driver's door module |
| 12 | Driver's seat module |
| 13 | Diagnostic socket |
| 14 | Tire Pressure Monitoring System (TPMS) control module |
| 15 | Entertainment system control module |
| 16 | Climate seat module |
