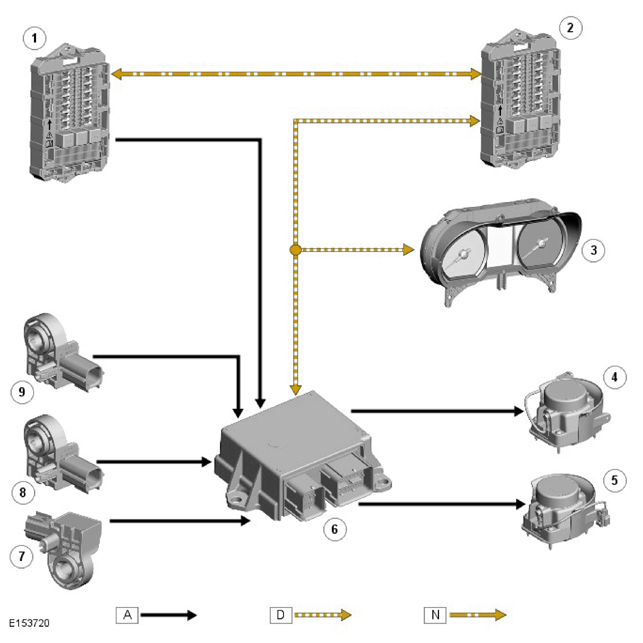

Control Diagram
NOTE:
A = Hardwired; D
= High speed CAN (controller area network) bus; N = Medium speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | RJB (rear junction box) |
| 2 | CJB (central junction box) |
| 3 | Instrument cluster |
| 4 | LH (left-hand) hood actuator |
| 5 | RH (right-hand) hood actuator |
| 6 | Restraints control module |
| 7 | Accelerometer |
| 8 | Accelerometer |
| 9 | Accelerometer |
