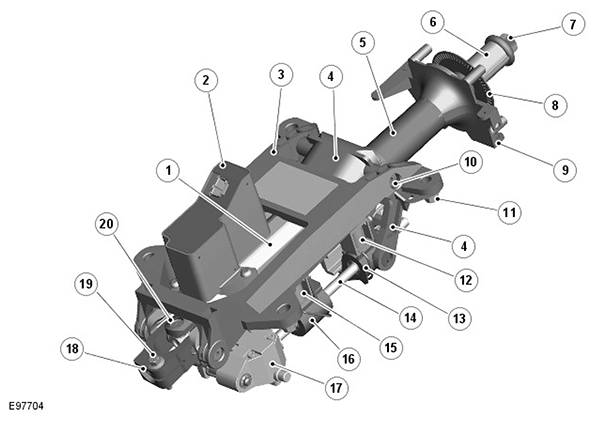

Steering Column: Notes
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rake housing |
| 2 | Electric steering column lock |
| 3 | Mounting plate |
| 4 | Rake lever |
| 5 | Crash tube |
| 6 | Distance keeper |
| 7 | Steering wheel mounting splines |
| 8 | Steering angle sensor ring |
| 9 | Crash adaptor |
| 10 | Rake lever pivot bearing (2 off) |
| 11 | Flanged locknut (4 off) - mounting to cross-beam |
| 12 | Rake solenoid |
| 13 | Rake clutch |
| 14 | Spindle |
| 15 | Reach solenoid |
| 16 | Reach clutch |
| 17 | Column adjustment motor |
| 18 | Outer clamping yoke |
| 19 | Clamp bolt |
| 20 | Inner tube yoke |
WARNING:
Do not attempt to dismantle the steering column. The crash safety of the unit will be compromised.
The steering column is attached to the in-vehicle cross-beam and secured with 4 flanged lock nuts onto 4 studs integral with the crossbeam.
