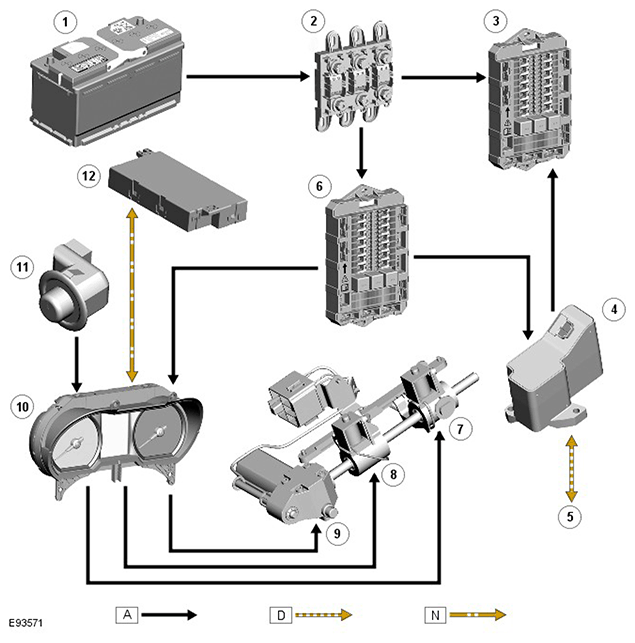

Control Diagram
NOTE:
A
= Hardwired; D
= High speed CAN bus; N
= Medium speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) - Megafuse (175A) |
| 3 | RJB (rear junction box) |
| 4 | Electric steering column lock |
| 5 | High Speed CAN (controller area network) bus to other vehicle systems |
| 6 | CJB (central junction box) |
| 7 | Rake adjustment solenoid and potentiometer |
| 8 | Reach adjustment solenoid and potentiometer |
| 9 | Column adjustment motor |
| 10 | Instrument cluster |
| 11 | Steering column adjust switch |
| 12 | Driver's seat module (position memory) |
