System Operation And Component Description: Notes
WARNING: This page is about a different car, the 2010 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; D
= High speed controller area network (CAN) bus; O
= LIN bus; U
= Private controller area network (CAN) bus

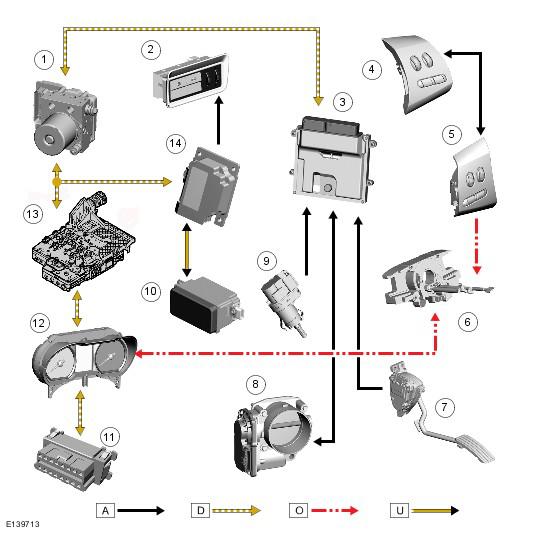

| Item Number | Description |
|---|---|
| 1 | anti-lock brake system (ABS) module |
| 2 | Forward alert switch |
| 3 | engine control module (ECM) |
| 4 | Speed control switches |
| 5 | Audio system control switches |
| 6 | Clock spring |
| 7 | accelerator pedal position (APP) |
| 8 | Electric throttle |
| 9 | brake pedal position (BPP) switch |
| 10 | Adaptive speed control radar sensor |
| 11 | Diagnostic socket |
| 12 | Instrument cluster |
| 13 | transmission control module (TCM) |
| 14 | Adaptive speed control module |
