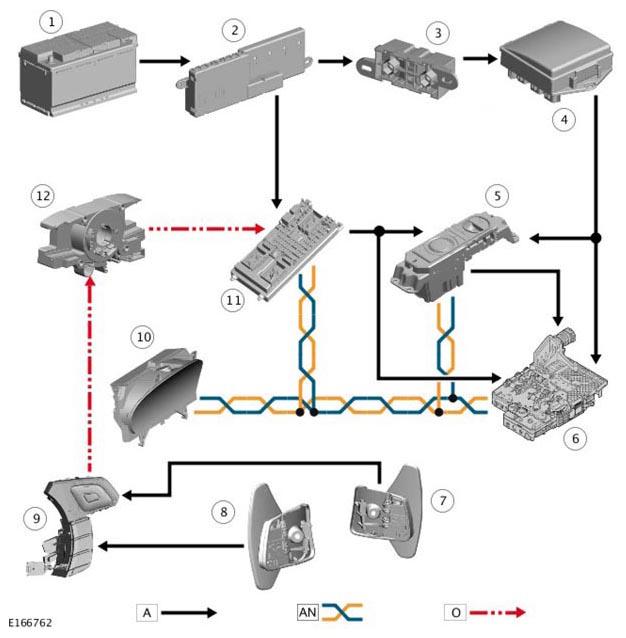

Control Diagram
NOTE:
A
= Hardwired; AN
= HS (High Speed) CAN (Controller Area Network) Powertrain bus; O
= LIN (Local Interconnect Network) bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Megafuse |
| 4 | Engine Junction Box (EJB) |
| 5 | Transmission Control Switch (TCS) |
| 6 | Transmission Control Module (TCM) |
| 7 | Upshift paddle switch |
| 8 | Downshift paddle switch |
| 9 | Right steering wheel switchpack |
| 10 | Instrument Cluster (IC) |
| 11 | Central Junction Box (CJB) |
| 12 | Clockspring |
